ICL3222ECAZ-T - Renesas Electronics

Description: The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici

Download ICL3222ECAZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

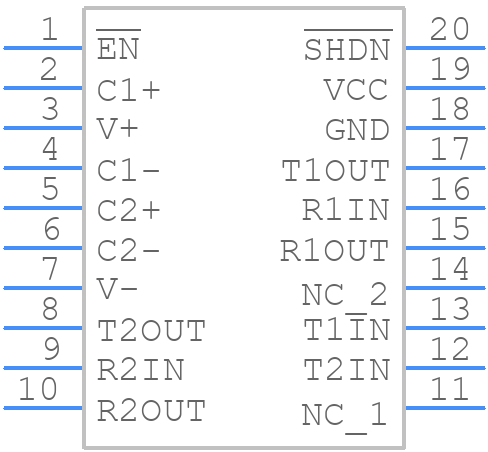

ICL3222ECAZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
ICL3222ECAZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M20.209-1
click to zoom
3D Models
ICL3222ECAZ-T - Renesas Electronics - 3D model - Small Outline Packages - M20.209-1
click to zoom

ICL3222ECAZ-T Details

  • Manufacturer Part Number:

    ICL3222ECAZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    M20.209

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-27

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

ICL3222ECAZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in the application note AN9834, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure reliable operation.
  • The ICL3222ECAZ-T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
  • The maximum cable length supported by the ICL3222ECAZ-T depends on the specific application and the type of cable used. As a general guideline, Renesas recommends keeping the cable length as short as possible (less than 1 meter) to minimize signal degradation and ensure reliable operation.
  • Yes, the ICL3222ECAZ-T can be used in non-RS-232 applications, such as TTL or CMOS-level interfaces, by adjusting the output voltage and impedance to match the specific requirements of the application.
  • Renesas provides a troubleshooting guide in the application note AN9835, which covers common issues and their solutions, including data corruption, transmission errors, and device malfunction.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ICL3222ECAZ-T Overview

Use the download button to access the ICL3222ECAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32, or try a keyword search, such as Line Driver or Receivers
