ICL3222EIAZ-T - Renesas Electronics

Description: The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici

Download ICL3222EIAZ-T Model

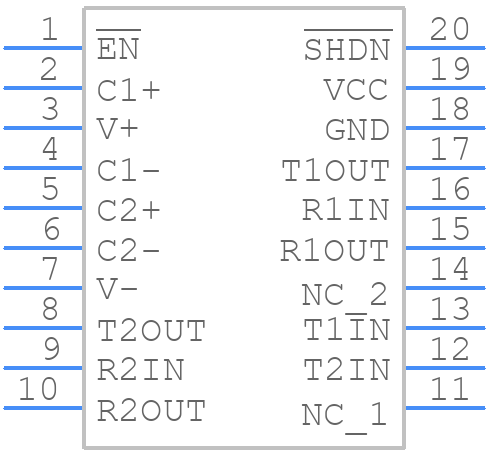

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ICL3222EIAZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M20.209-1
click to zoom
3D Models
ICL3222EIAZ-T - Renesas Electronics  - 3D model - Small Outline Packages - M20.209-1
click to zoom

ICL3222EIAZ-T Details

  • Manufacturer Part Number:

    ICL3222EIAZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    M20.209

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-27

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; TIA-232; V.24; V.28

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

ICL3222EIAZ-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the ICL3222EIAZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to place the device close to the power supply and use a low-ESR capacitor for decoupling.
  • To ensure proper termination, use a 50-ohm termination resistor in series with the transmission line, and place a 50-ohm load resistor at the receiving end. Additionally, use a transmission line with a characteristic impedance of 50 ohms to minimize signal reflections.
  • The maximum cable length supported by the ICL3222EIAZ-T depends on the data rate and cable quality. As a general guideline, the device can support cable lengths up to 10 meters at data rates up to 100 Mbps, and up to 5 meters at data rates up to 400 Mbps.
  • To minimize EMI and RFI emissions, use a shielded cable, keep the device and cable away from noise sources, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, ensure that the PCB layout is designed to minimize radiation and use a metal enclosure to shield the device.
  • The recommended power-up sequence for the ICL3222EIAZ-T is to first apply the analog power supply (VCC), followed by the digital power supply (VDD). This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
