Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for the ICL3222EIAZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper termination, use a 50-ohm termination resistor in series with the transmission line, and a 50-ohm load resistor to ground at the receiving end. Additionally, use a transmission line with a characteristic impedance of 50 ohms.
The maximum cable length supported by the ICL3222EIAZ depends on the data rate and the type of cable used. As a general guideline, the maximum cable length for a data rate of 100 Mbps is around 100 meters, while for a data rate of 1 Gbps, it's around 40 meters.
To handle hot swapping with the ICL3222EIAZ, use a hot swap controller that can handle the inrush current and voltage transients during plug-in. Additionally, ensure that the power supply can handle the inrush current and that the system is designed to handle the voltage transients.
The ICL3222EIAZ has built-in ESD protection, but it's still important to follow proper ESD handling procedures during manufacturing and assembly. Additionally, consider adding external ESD protection devices, such as TVS diodes, to protect the device from external ESD events.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3222EIAZ Overview

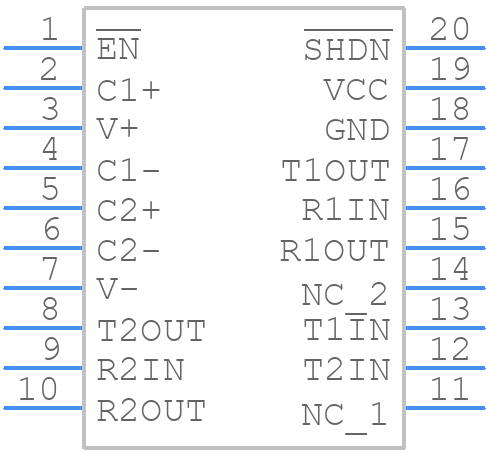

Use the download button to access the ICL3222EIAZ schematic symbol, PCB footprint, and 3D model.
