Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
A good PCB layout for the ICL3223IAZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliable communication with the ICL3223IAZ in noisy environments, use a shielded cable, keep the cable length as short as possible, and use a common mode choke or ferrite bead to filter out electromagnetic interference (EMI). Additionally, consider using a differential signal transmission scheme and implementing error-checking mechanisms in your communication protocol.
The ICL3223IAZ has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended power dissipation guidelines and avoid exceeding the maximum power rating.
To troubleshoot issues with the ICL3223IAZ, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify the signal integrity and check for any signs of physical damage or overheating. Use a logic analyzer or oscilloscope to debug the signal transmission and reception. If the issue persists, consult the datasheet and application notes for guidance or contact Renesas Electronics Corporation's technical support.
Yes, the ICL3223IAZ is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, handle the device by the body or pins, and avoid touching the pins or leads. Also, ensure that the PCB and components are properly grounded during assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3223IAZ Overview

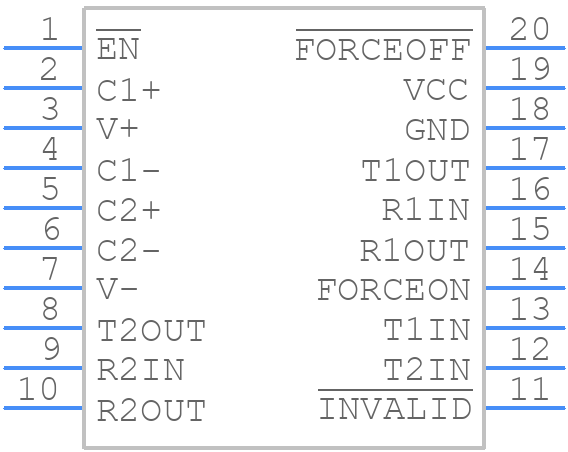

Use the download button to access the ICL3223IAZ schematic symbol, PCB footprint, and 3D model.
