Description:The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply curr
Renesas recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize EMI and noise. Additionally, keep the signal traces short and away from the power traces, and use shielding or guard rings around sensitive signals.
To ensure reliable operation in high-temperature environments, Renesas recommends following proper thermal design and layout guidelines, such as using a heat sink, thermal vias, and thermal pads. Additionally, ensure that the device is operated within its specified temperature range and that the junction temperature is kept below the maximum rating.
When using the ICL3223IVZ in a system with a high-speed digital clock, Renesas recommends taking precautions to minimize digital noise coupling into the analog circuitry. This can be achieved by using proper shielding, grounding, and layout techniques, as well as using a clock signal with a controlled slew rate and amplitude.
To troubleshoot issues with the ICL3223IVZ, Renesas recommends following a systematic approach, starting with a review of the device's operating conditions, power supply, and signal integrity. Use oscilloscopes and logic analyzers to capture waveforms and debug signals, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
When using the ICL3223IVZ in a system with multiple power domains or voltage rails, Renesas recommends ensuring that the device is properly powered and referenced to the correct voltage rail. Additionally, take precautions to prevent voltage transients and noise from one power domain from affecting the operation of the device in another power domain.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3223IVZ Overview

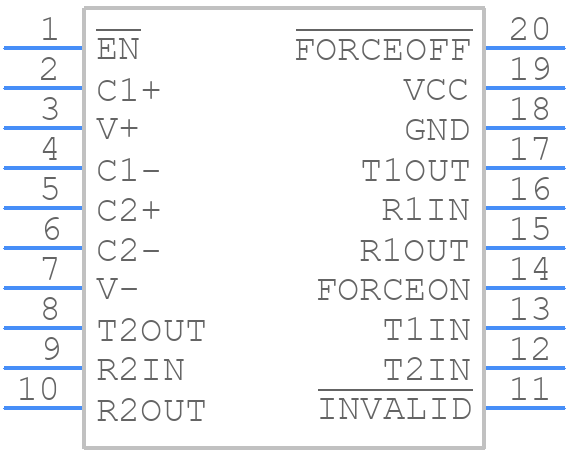

Use the download button to access the ICL3223IVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
