Description:The ICL3225E, ICL3227E, and ICL3245E devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. They provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are PDAs, Palmtops, and notebook and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge
A good PCB layout for the ICL3227ECAZA involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device close to the signal sources and loads, and to use a low-ESR capacitor for the VCC pin.
The ICL3227ECAZA has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. This includes using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
The maximum cable length supported by the ICL3227ECAZA depends on the specific application and the type of cable used. However, as a general rule, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps. It's recommended to consult the datasheet and application notes for more specific guidance.
Yes, the ICL3227ECAZA is designed to support hot-swapping, but it's recommended to follow proper design guidelines to ensure reliable operation. This includes using a suitable connector and cable, and implementing proper power sequencing and fault detection.
Common issues with the ICL3227ECAZA include signal integrity problems, power supply noise, and incorrect termination. To troubleshoot these issues, it's recommended to use a logic analyzer or oscilloscope to monitor the signal waveforms, and to check the power supply and termination resistors for proper configuration.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3227ECAZA Overview

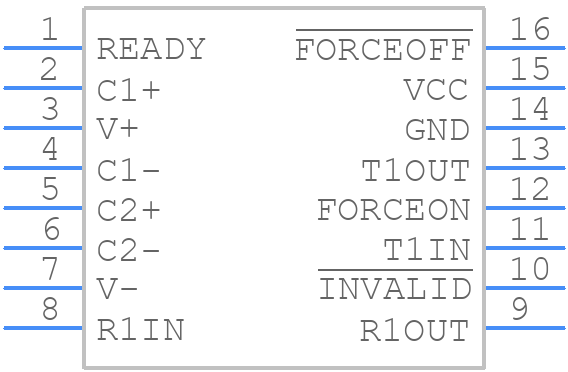

Use the download button to access the ICL3227ECAZA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
