Description:The ICL3238E contains 3. 0V to 5. 5V powered RS‑232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. It provides ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS‑232 pins). Targeted applications are cell phones, Palmtops, and data cables in which the low operational power consumption and even lower standby power consumption is critical. Efficient on-chip charge pumps coupled with manual and enhanc
Renesas recommends following a star-grounding topology, keeping the analog and digital grounds separate, and using a solid ground plane to minimize EMI and noise. Additionally, keep the signal traces short and away from the power traces, and use a common-mode choke or ferrite bead to filter out high-frequency noise.
Renesas recommends using a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin, and a smaller capacitor (e.g., 100nF) in parallel to filter out high-frequency noise. Additionally, ensure the power supply is stable and well-regulated, and consider adding a voltage regulator or filter to the input power rail if necessary.
Renesas recommends using a shielded, twisted-pair cable with a maximum length of 1.5 meters (4.9 feet) to minimize signal degradation and EMI. The cable should be rated for the desired data rate and frequency of operation, and should be terminated with a suitable connector or socket.
Renesas recommends checking the power supply and decoupling, ensuring proper signal termination and cable quality, and verifying the transmit and receive clock frequencies and data rates. Additionally, use a logic analyzer or oscilloscope to monitor the signal quality and timing, and consult the datasheet and application notes for troubleshooting guidelines.
Renesas recommends ensuring good airflow around the device, using a heat sink or thermal pad if necessary, and avoiding high-temperature operating conditions. The device is rated for operation up to 85°C, but excessive temperatures can affect performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3238EIVZ Overview

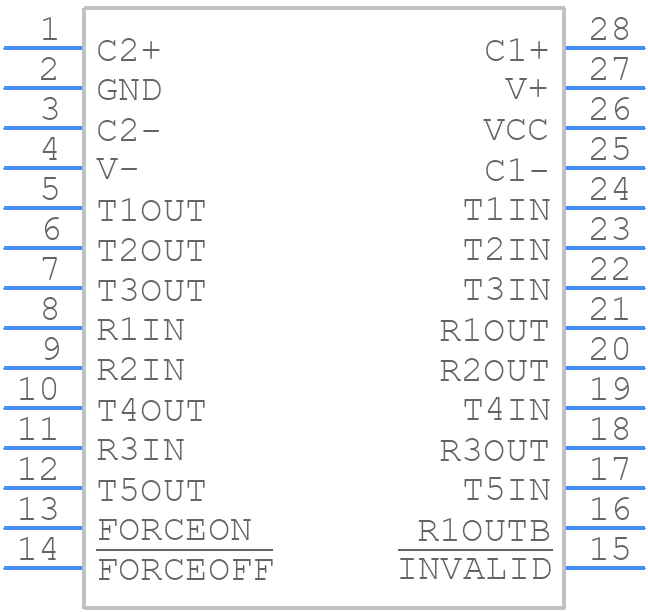

Use the download button to access the ICL3238EIVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
