Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for ICL3241ECAZ-T involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. It's also recommended to place the device close to the power supply and use short, direct traces to reduce parasitic inductance.
To ensure the ICL3241ECAZ-T operates within its recommended operating conditions, make sure to provide a stable power supply within the recommended voltage range (4.5V to 5.5V), keep the junction temperature within the specified range (-40°C to 125°C), and avoid exceeding the maximum ratings for input and output currents.
To filter out noise and EMI in your ICL3241ECAZ-T circuit, use a combination of passive components such as resistors, capacitors, and inductors. You can also use active filters like op-amps or dedicated filter ICs. Additionally, consider using shielding, grounding, and layout techniques to minimize noise coupling and radiation.
While the ICL3241ECAZ-T is rated for operation up to 125°C, it's essential to consider the device's thermal characteristics and ensure proper heat dissipation in high-temperature environments. You may need to use thermal management techniques like heat sinks, thermal interfaces, or forced air cooling to maintain a safe operating temperature.
To troubleshoot common issues with the ICL3241ECAZ-T, start by verifying the power supply and input voltage levels. Check for proper PCB layout, decoupling, and filtering. Use an oscilloscope to monitor the output voltage and look for signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3241ECAZ-T Overview

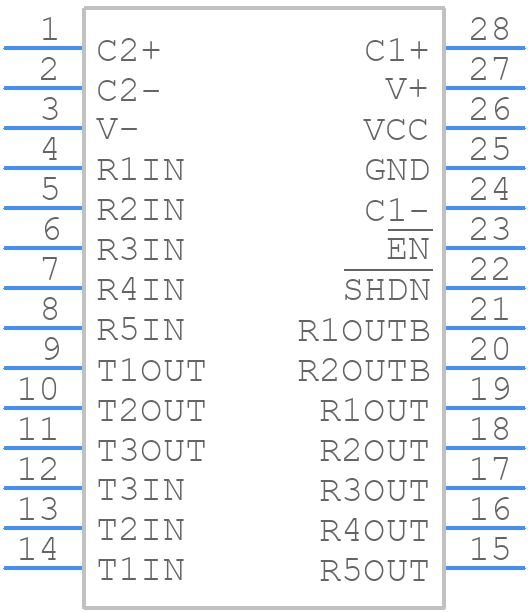

Use the download button to access the ICL3241ECAZ-T schematic symbol, PCB footprint, and 3D model.
