Description:The ICL3221E, ICL3222E, ICL3223E, ICL3232E, ICL3241E, and ICL3243E are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Additionally, they provide ±15kV ESD protection (IEC61000-4-2 Air Gap and Human Body Model) on transmitter outputs and receiver inputs (RS-232 pins). Targeted applications are notebook and laptop computers in which the low operational power consumption and even lower standby power consumption is critical. Effici
A good PCB layout for the ICL3241EIVZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the IC to the power supply and load. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the ICL3241EIVZ operates within its recommended operating conditions, make sure to provide a stable power supply voltage between 3.0V and 5.5V, keep the ambient temperature within the range of -40°C to 85°C, and avoid exceeding the maximum junction temperature of 150°C.
When handling the ICL3241EIVZ, take precautions to prevent electrostatic discharge (ESD) damage by using an ESD wrist strap or mat, avoid touching the pins or leads, and handle the IC by the body or pins only. Also, avoid bending or flexing the leads, and use a vacuum pickup tool or tweezers to handle the IC.
To troubleshoot issues with the ICL3241EIVZ, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the PCB layout for any issues, such as poor grounding or inadequate decoupling. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and optimization.
The ICL3241EIVZ has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to ensure proper heat dissipation. Use a thermal interface material (TIM) to fill any gaps between the IC and the thermal plane. Ensure good airflow around the IC, and consider using a heat sink or thermal management system for high-power applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL3241EIVZ Overview

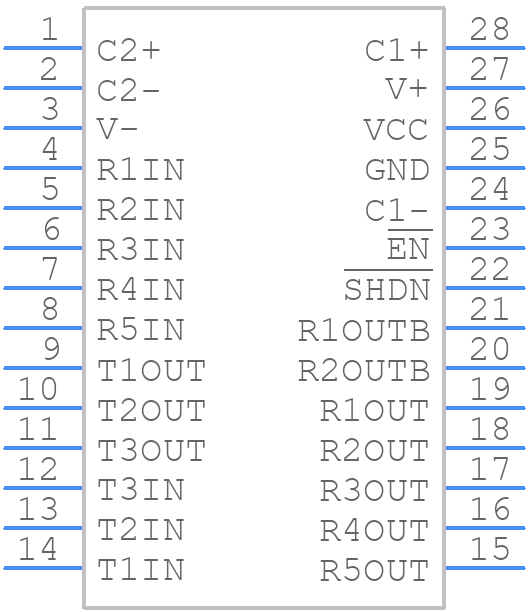

Use the download button to access the ICL3241EIVZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL32,
or try a keyword search, such as Line Driver or Receivers
