To minimize noise and ensure accurate readings, it is recommended to place the ICL7135CNG4 close to the analog-to-digital converter (ADC) and use a ground plane to shield the device from noise. Additionally, use short and direct traces for the analog input signals, and avoid running digital signals near the analog input traces.
Calibration of the ICL7135CNG4 involves adjusting the zero-scale and full-scale calibration pots (R1 and R2) to match the desired output voltage range. This can be done by applying a known input voltage and adjusting the pots to achieve the desired output voltage. It is recommended to follow the calibration procedure outlined in the datasheet or application notes.
The ICL7135CNG4 can handle input voltages up to 40V without damage. However, it is recommended to operate the device within the specified input voltage range (±15V) to ensure accurate and reliable operation.
The ICL7135CNG4 is rated for operation up to 85°C. However, it is recommended to derate the device's performance and accuracy at higher temperatures. For high-temperature applications, it is recommended to use a thermally compensated voltage reference, such as the REF3030, which is specifically designed for high-temperature operation.
To ensure proper operation, the ICL7135CNG4 requires a stable power supply voltage (VCC) and proper decoupling. It is recommended to use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and to place a 100nF capacitor between the input pins and GND to filter out high-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICL7135CNG4 Overview

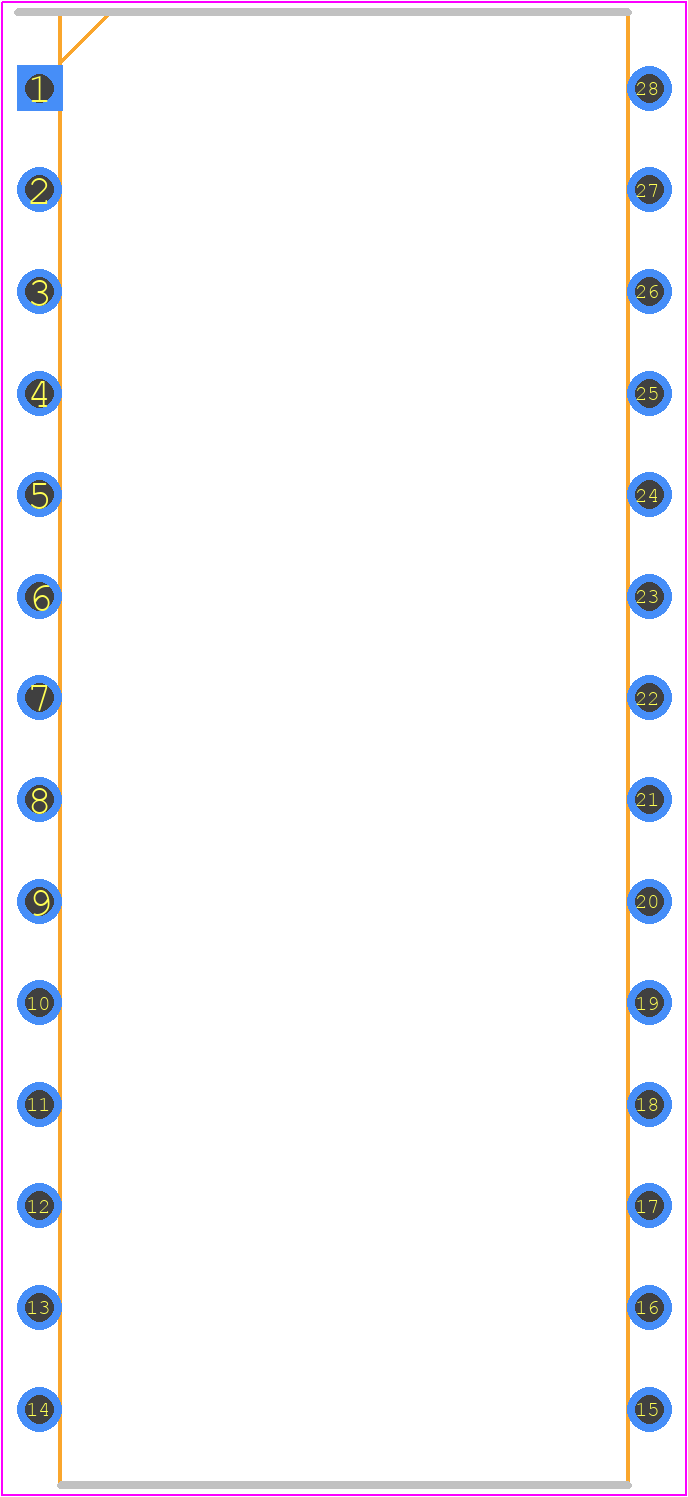

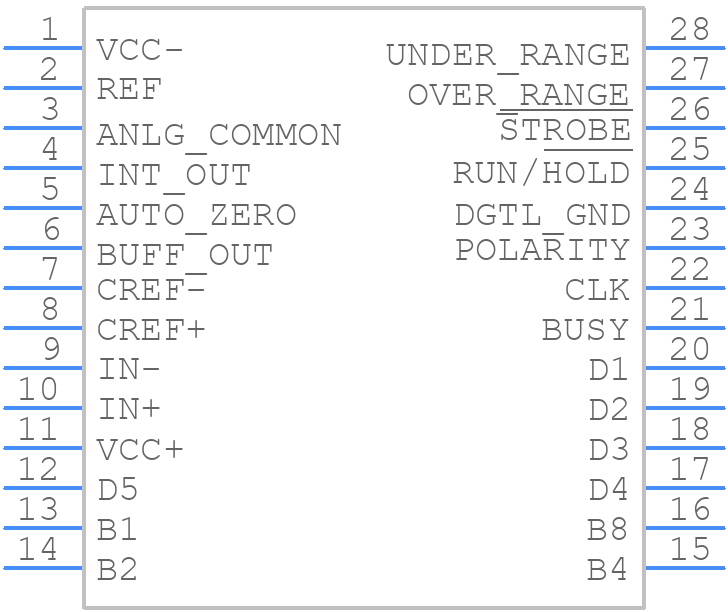

Use the download button to access the ICL7135CNG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICL71,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
