A good PCB layout for ICPL2631 involves keeping the input and output traces short and separate, using a ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a shielded cable for the input signal to minimize noise.
To ensure reliability in high-temperature applications, it's essential to follow the recommended operating temperature range (up to 125°C) and consider derating the device's power dissipation. Additionally, using a heat sink or thermal pad can help to dissipate heat effectively.
Although the datasheet doesn't specify a maximum voltage, it's generally recommended to limit the input voltage to ±10V to prevent damage to the device. Exceeding this voltage may cause permanent damage or affect the device's reliability.
Yes, ICPL2631 can be used in switching power supply applications due to its high-speed switching capability and low propagation delay. However, it's crucial to ensure that the device is properly biased and that the input signal is within the recommended voltage range.
To troubleshoot ICPL2631, start by verifying the power supply voltage, input signal, and output load. Check for proper PCB layout, decoupling, and grounding. Use an oscilloscope to inspect the input and output waveforms, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ICPL2631 Overview

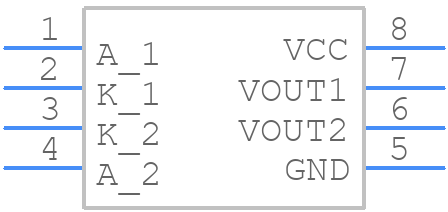

Use the download button to access the ICPL2631 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ICPL2,
or try a keyword search, such as Optocoupler
