IFCM20T65GDXKMA1 - Infineon

Description: Standalone Power Factor

Download IFCM20T65GDXKMA1 Model

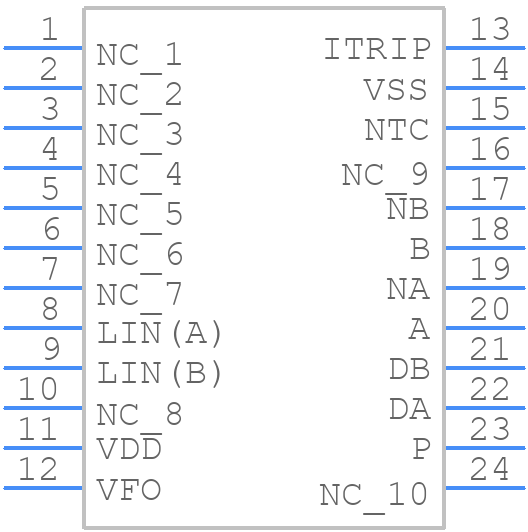

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

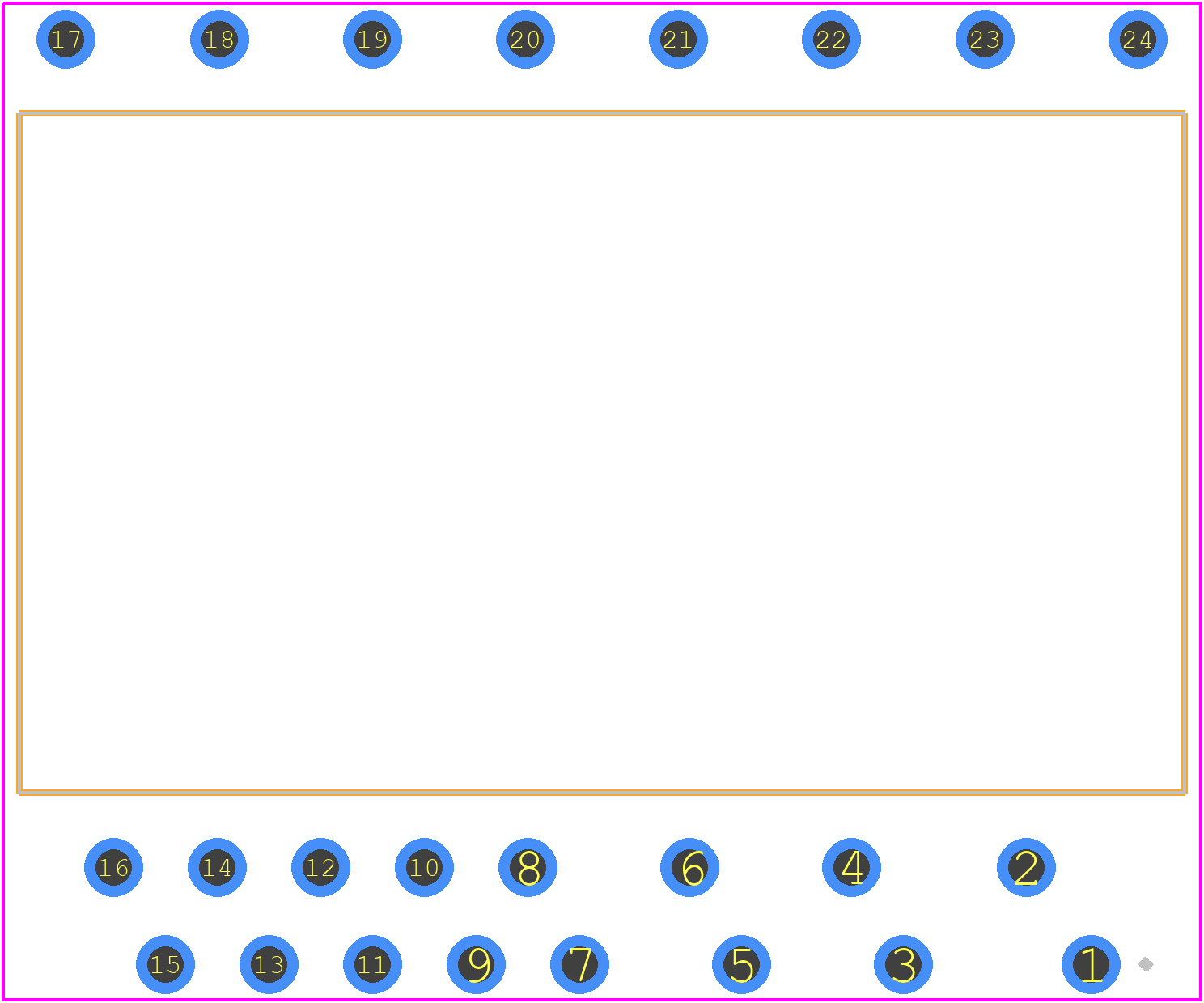

IFCM20T65GDXKMA1 - Infineon PCB footprint - Other - Other - IFCM20T65GDXKMA1-2
click to zoom
3D Models
IFCM20T65GDXKMA1 - Infineon  - 3D model - Other - IFCM20T65GDXKMA1-2
click to zoom

IFCM20T65GDXKMA1 Details

  • Manufacturer Part Number:

    IFCM20T65GDXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Germany, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    5

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-MDFM-X24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    METAL

  • Package Code:

    DFM

  • Package Equivalence Code:

    MODULE,25LEAD,4.0

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

IFCM20T65GDXKMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
  • Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IGBT's gate-emitter voltage. The driver should also have a suitable propagation delay and rise/fall time to ensure proper switching.
  • The maximum allowed overcurrent is typically 2-3 times the nominal current rating. To protect the module, use a fast-acting fuse or a current sensor with a shutdown circuit to detect overcurrent conditions and disconnect the power supply.
  • Ensure good thermal contact between the module and the heat sink using a thermal interface material. The heat sink should be designed to provide adequate airflow and have a sufficient thermal capacity to dissipate the heat generated by the module.
  • Infineon provides guidelines for soldering and assembly in their application note AN2013-04, which includes recommendations for soldering temperature, time, and flux type, as well as handling and storage precautions.
