IFCM30T65GDXKMA1 - Infineon

Description: Power Driver Module IGBT 2 Phase 650 V 30 A 24-PowerDIP Module (1.028", 26.10mm)

Download IFCM30T65GDXKMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

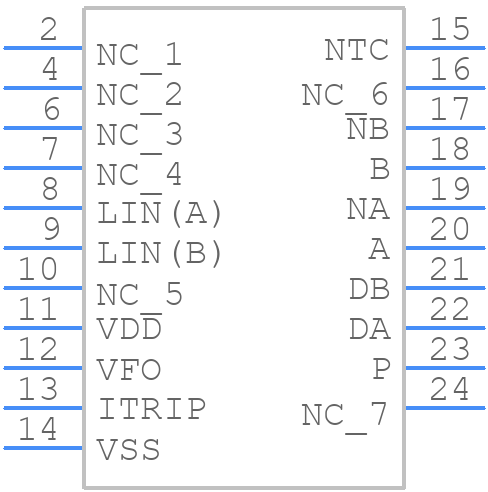

IFCM30T65GDXKMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints

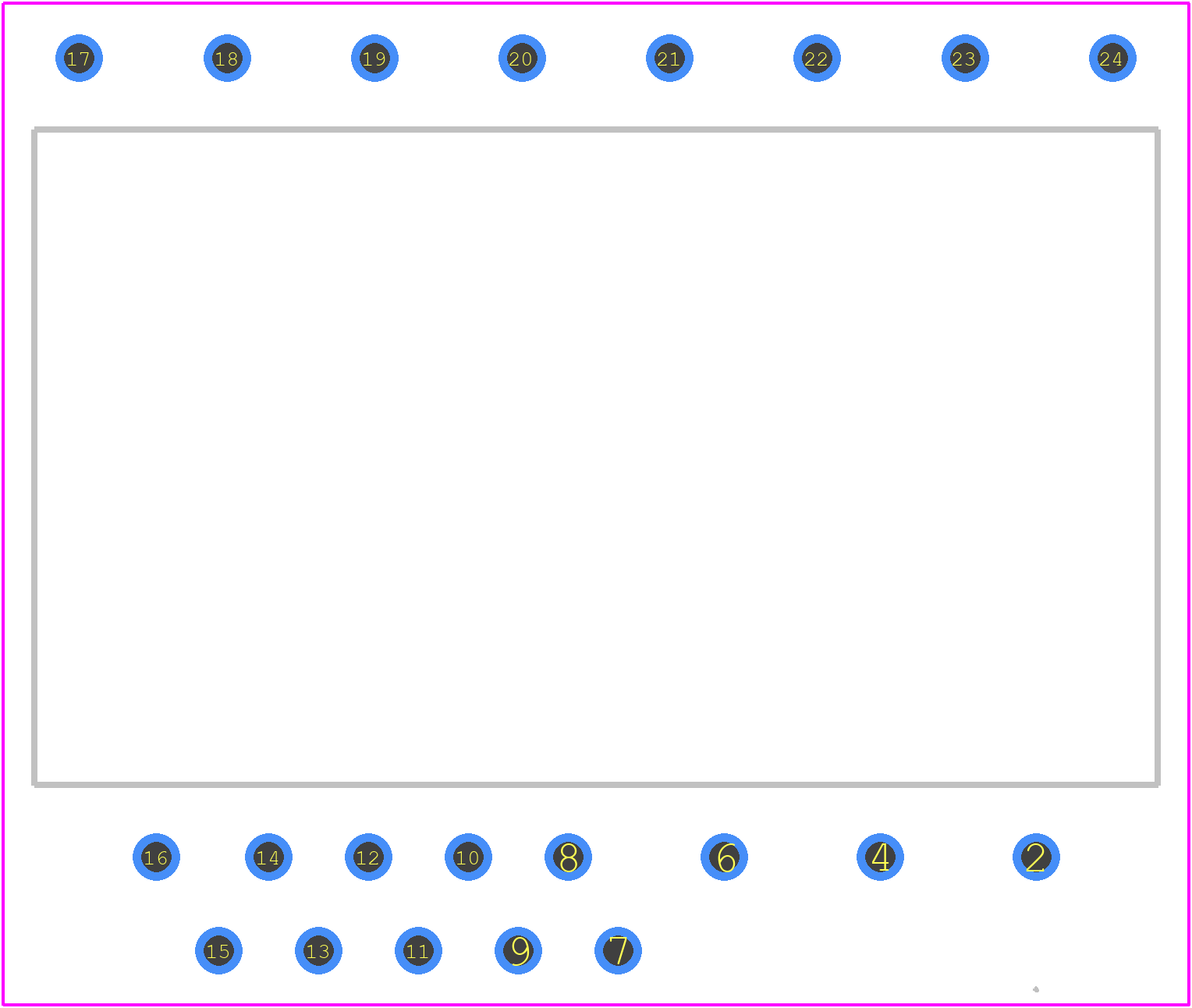

IFCM30T65GDXKMA1 - Infineon PCB footprint - Other - Other - 24-PowerDIP Module (1.028", 26.10mm)
click to zoom
3D Models
IFCM30T65GDXKMA1 - Infineon - 3D model - Other - 24-PowerDIP Module (1.028", 26.10mm)
click to zoom

IFCM30T65GDXKMA1 Details

  • Manufacturer Part Number:

    IFCM30T65GDXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Germany, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-MDFM-X24

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    METAL

  • Package Code:

    DFM

  • Package Equivalence Code:

    MODULE,25LEAD,4.0

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    DUAL

IFCM30T65GDXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IFCM30T65GDXKMA1 is -40°C to 150°C.
  • Yes, the IFCM30T65GDXKMA1 is AEC-Q101 qualified, making it suitable for automotive applications.
  • The typical switching frequency for the IFCM30T65GDXKMA1 is up to 100 kHz, but it can be operated at frequencies up to 200 kHz with proper design and layout considerations.
  • To ensure proper cooling, it is recommended to use a heat sink with a thermal resistance of ≤ 10 K/W, and to follow the thermal design guidelines provided in the datasheet.
  • Yes, the IFCM30T65GDXKMA1 is designed for high-reliability applications, with a failure rate of ≤ 10 FIT (failures per 10^9 hours) at 125°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

IFCM30T65GDXKMA1 Overview

Use the download button to access the IFCM30T65GDXKMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IFCM3, or try a keyword search, such as Motion Control Electronics
