IFN5432 - InterFET

Description: JFET N-Channel -25V Low Noise

Download IFN5432 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

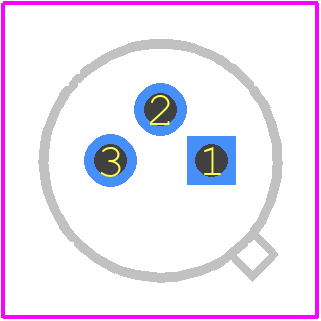

IFN5432 - InterFET PCB footprint - Other - Other - TO-52_Master-1
click to zoom
3D Models
IFN5432 - InterFET  - 3D model - Other - TO-52_Master-1
click to zoom

IFN5432 Details

  • Manufacturer Part Number:

    IFN5432

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    InterFET Corporation

  • Case Connection:

    GATE

  • Configuration:

    SINGLE

  • Drain-source On Resistance-Max:

    5 Ω

  • FET Technology:

    JUNCTION

  • Feedback Cap-Max (Crss):

    20 pF

  • JEDEC-95 Code:

    TO-52

  • JESD-30 Code:

    O-MBCY-W3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    METAL

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

IFN5432 Frequently Asked Questions (FAQs)

  • A good PCB layout for the IFN5432 should ensure minimal lead inductance, use a solid ground plane, and keep the input and output traces separate to minimize cross-talk. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The IFN5432 has a high power density, so thermal management is crucial. Use a heat sink with a thermal conductivity of at least 1 W/m-K, and ensure good airflow around the device. You can also use thermal interface materials to improve heat transfer.
  • For optimal performance, use a 50-ohm input termination and a 50-ohm output termination. This will ensure maximum power transfer and minimize reflections.
  • Yes, the IFN5432 can be used in a push-pull configuration to achieve higher output power and improved linearity. However, ensure that the devices are properly matched and biased to avoid uneven current distribution.
  • The IFN5432 requires a bias voltage of around 2.5-3.5 V to achieve optimal performance. Use a voltage regulator or a bias network to ensure a stable bias voltage. The bias current should be limited to 10-20 mA to prevent overheating.
