The maximum operating temperature of the IGCM10F60GAXKMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate the module within a temperature range of 25°C to 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide adequate heat sinking and cooling for the module. This can be achieved by using a heat sink with a thermal resistance of ≤ 0.5 K/W, and ensuring good thermal contact between the module and the heat sink. Additionally, the module should be operated within the recommended temperature range to prevent overheating.
The recommended gate resistance for the IGCM10F60GAXKMA1 is between 10 Ω and 100 Ω. A higher gate resistance can lead to slower switching times and increased power losses, while a lower gate resistance can cause oscillations and electromagnetic interference (EMI).
Yes, the IGCM10F60GAXKMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched and synchronized to prevent uneven current sharing and thermal runaway. Additionally, the user should follow the guidelines provided in the datasheet and application notes for parallel operation.
The recommended dead time for the IGCM10F60GAXKMA1 is typically in the range of 1-2 μs. A shorter dead time can lead to increased power losses and electromagnetic interference (EMI), while a longer dead time can result in reduced efficiency and increased switching losses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IGCM10F60GAXKMA1 Overview

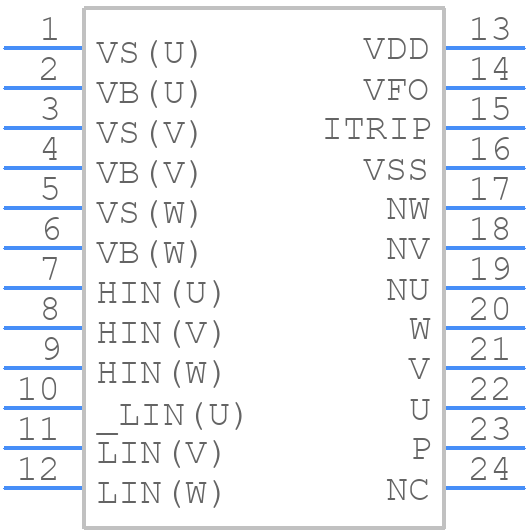

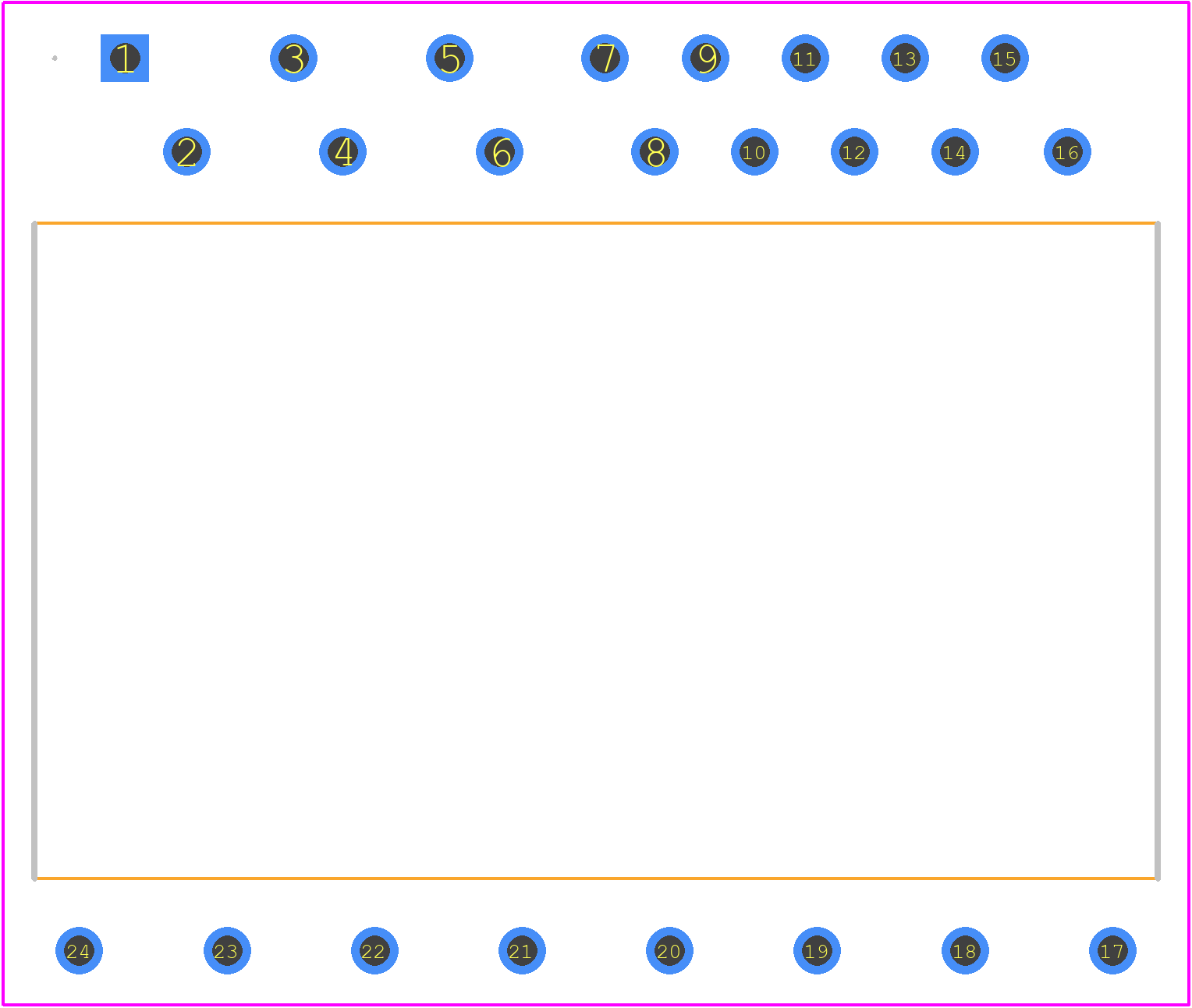

Use the download button to access the IGCM10F60GAXKMA1 schematic symbol, PCB footprint, and 3D model.
