IKCM10H60GA - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers Dual In-Line Intell. Pwr Module; 600V 10A

Download IKCM10H60GA Model

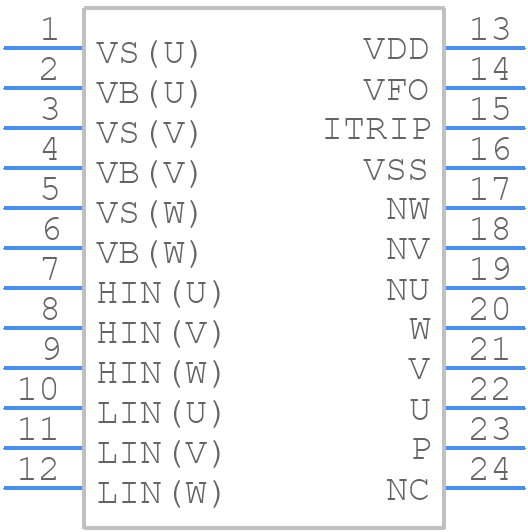

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

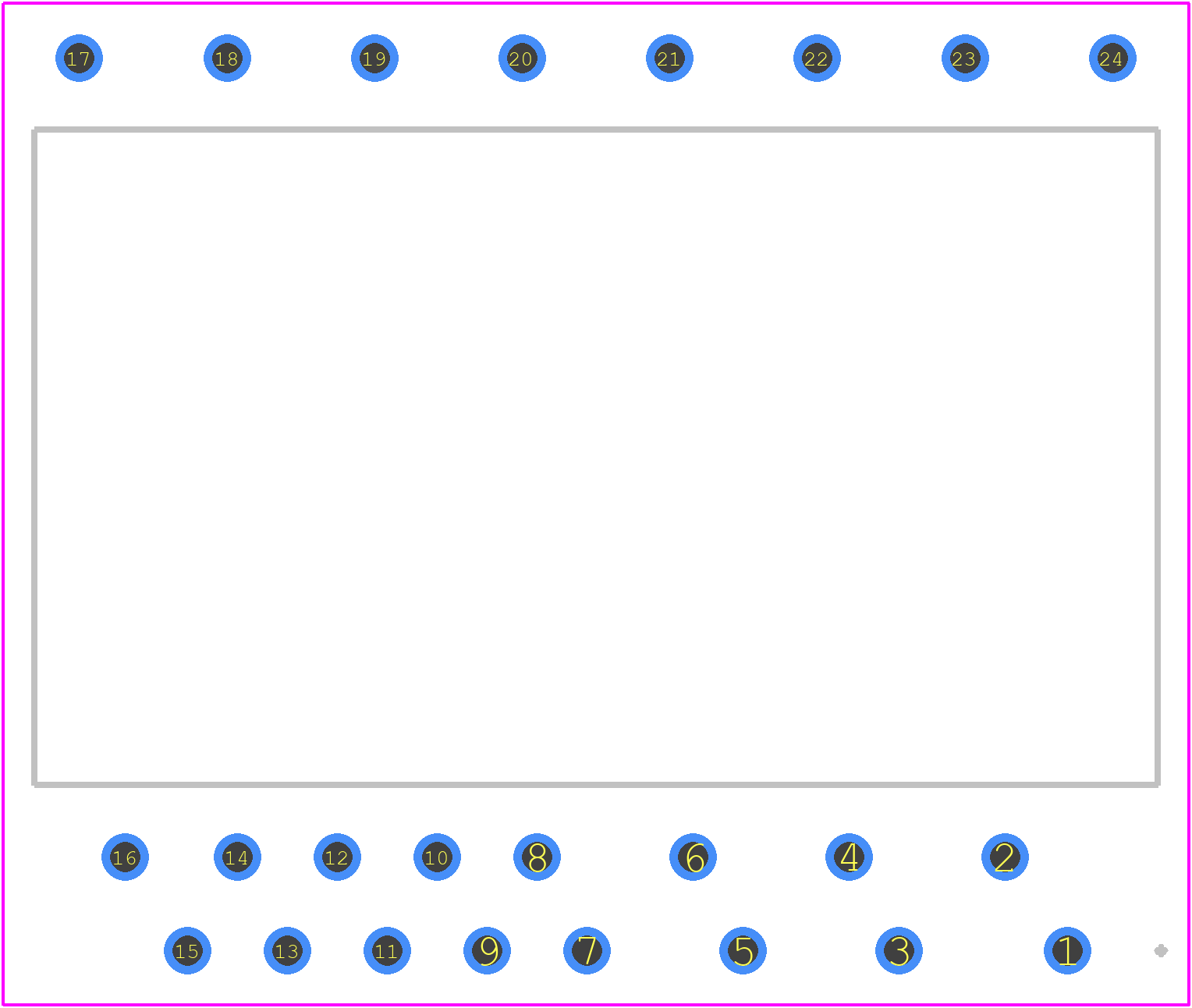

IKCM10H60GA - Infineon PCB footprint - Other - Other - IKCM10H60GA-2
click to zoom
3D Models
IKCM10H60GA - Infineon  - 3D model - Other - IKCM10H60GA-2
click to zoom

IKCM10H60GA Details

  • Manufacturer Part Number:

    IKCM10H60GA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Mainland China, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    16 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM10H60GA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM10H60GA is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • Proper cooling is crucial for the IKCM10H60GA. Ensure good thermal contact between the device and a heat sink, and use a thermal interface material (TIM) to fill any gaps. The heat sink should be designed to dissipate heat efficiently, and the system should be designed to provide adequate airflow.
  • The recommended gate drive voltage for the IKCM10H60GA is 15V, as specified in the datasheet. However, the device can tolerate gate drive voltages up to 20V, but this may affect the device's reliability and lifespan.
  • To protect the IKCM10H60GA from overvoltage and overcurrent conditions, use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) circuit. These circuits should be designed to respond quickly to fault conditions and limit the voltage and current to within the device's safe operating area.
  • For optimal performance and reliability, follow good PCB design practices, such as using a solid ground plane, minimizing trace inductance, and keeping high-frequency signals away from sensitive nodes. Also, ensure that the PCB is designed to handle the high currents and voltages associated with the IKCM10H60GA.
