The maximum operating temperature of the IKCM10H60GAXKMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate the module within a temperature range of -40°C to 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal interface material (TIM) to the base plate, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
The recommended gate resistor value for the IKCM10H60GAXKMA1 is typically between 10 ohms to 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
Yes, the IKCM10H60GAXKMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive circuits are synchronized to prevent uneven current sharing. Consult the datasheet and application notes for more information on parallel operation.
The maximum allowable voltage transient for the IKCM10H60GAXKMA1 is specified in the datasheet as 1200 V. However, it's recommended to limit the voltage transient to 1000 V or less to ensure reliable operation and prevent damage to the module.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IKCM10H60GAXKMA1 Overview

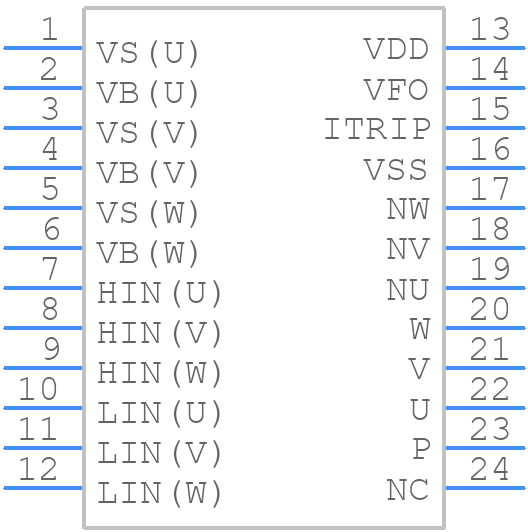

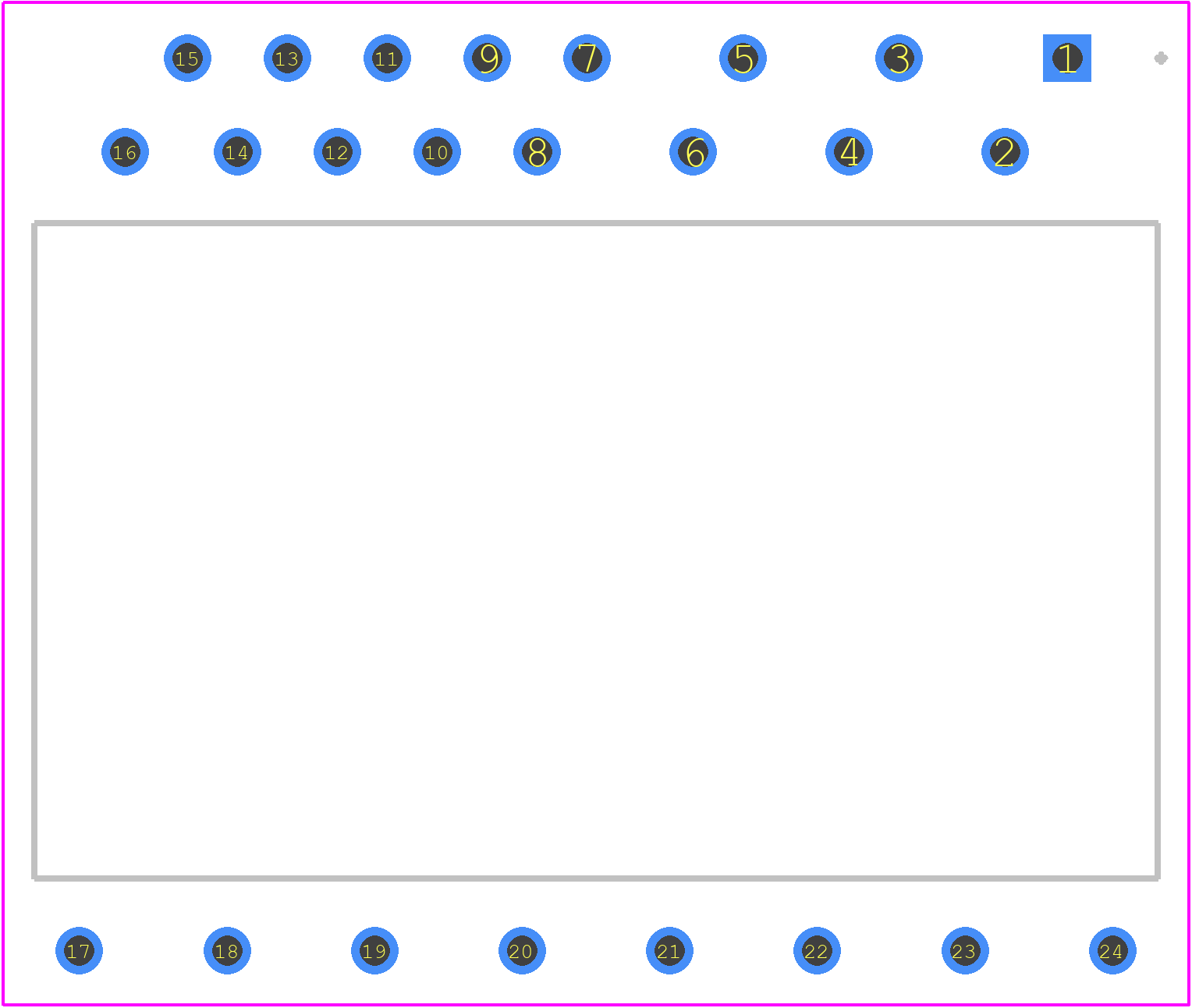

Use the download button to access the IKCM10H60GAXKMA1 schematic symbol, PCB footprint, and 3D model.
