IKCM10L60GAXKMA1 - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers CIPOS MINI

Download IKCM10L60GAXKMA1 Model

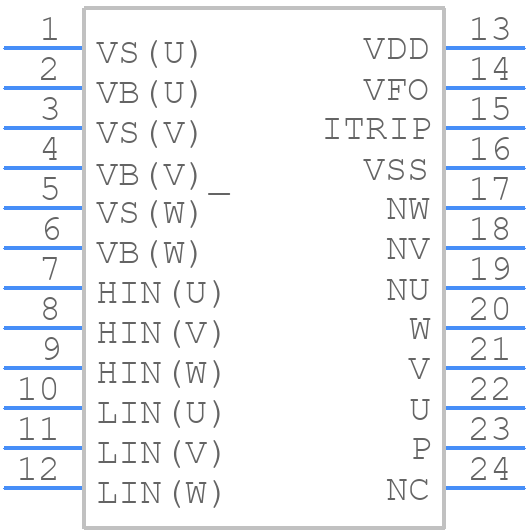

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

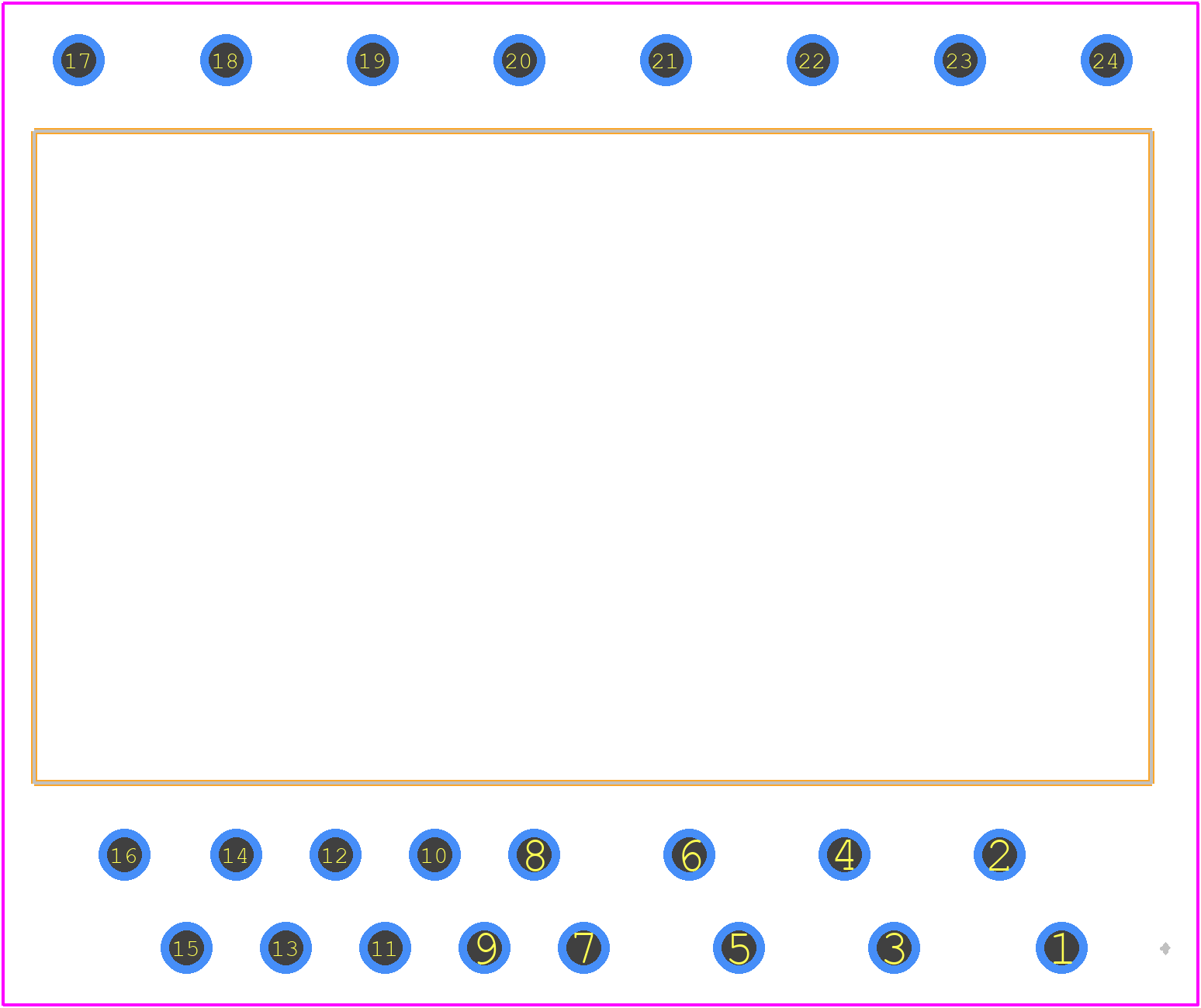

IKCM10L60GAXKMA1 - Infineon PCB footprint - Other - Other - IKCM10L60GAXKMA1-6
click to zoom
3D Models
IKCM10L60GAXKMA1 - Infineon  - 3D model - Other - IKCM10L60GAXKMA1-6
click to zoom

IKCM10L60GAXKMA1 Details

  • Manufacturer Part Number:

    IKCM10L60GAXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM10L60GAXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the IKCM10L60GAXKMA1 is 150°C, as specified in the datasheet. However, it's recommended to operate the module within a temperature range of 25°C to 125°C for optimal performance and reliability.
  • To ensure proper thermal management, it's essential to provide adequate heat sinking and cooling mechanisms. This can be achieved by using a heat sink with a thermal resistance of ≤ 0.5 K/W, and ensuring good thermal contact between the module and the heat sink. Additionally, consider using a thermal interface material (TIM) to fill any air gaps.
  • The recommended gate resistor value for the IKCM10L60GAXKMA1 is between 10 Ω to 20 Ω. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the IKCM10L60GAXKMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive circuits are synchronized to prevent uneven current sharing.
  • The maximum allowable voltage transient for the IKCM10L60GAXKMA1 is ±10% of the maximum rated voltage. Exceeding this limit may damage the module or affect its reliability.
