IKCM15F60GA - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers Dual In-Line Intell. Pwr Module; 600V 15A

Download IKCM15F60GA Model

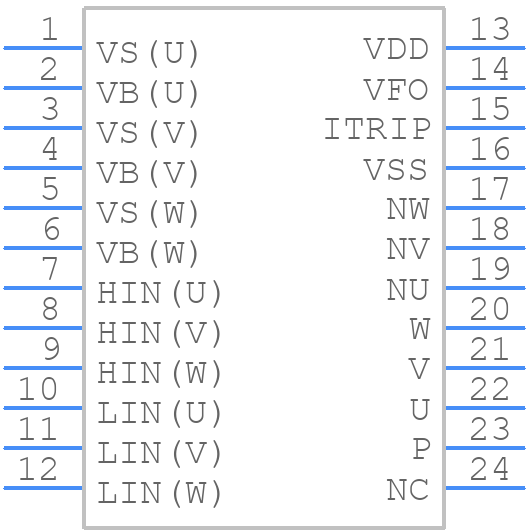

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

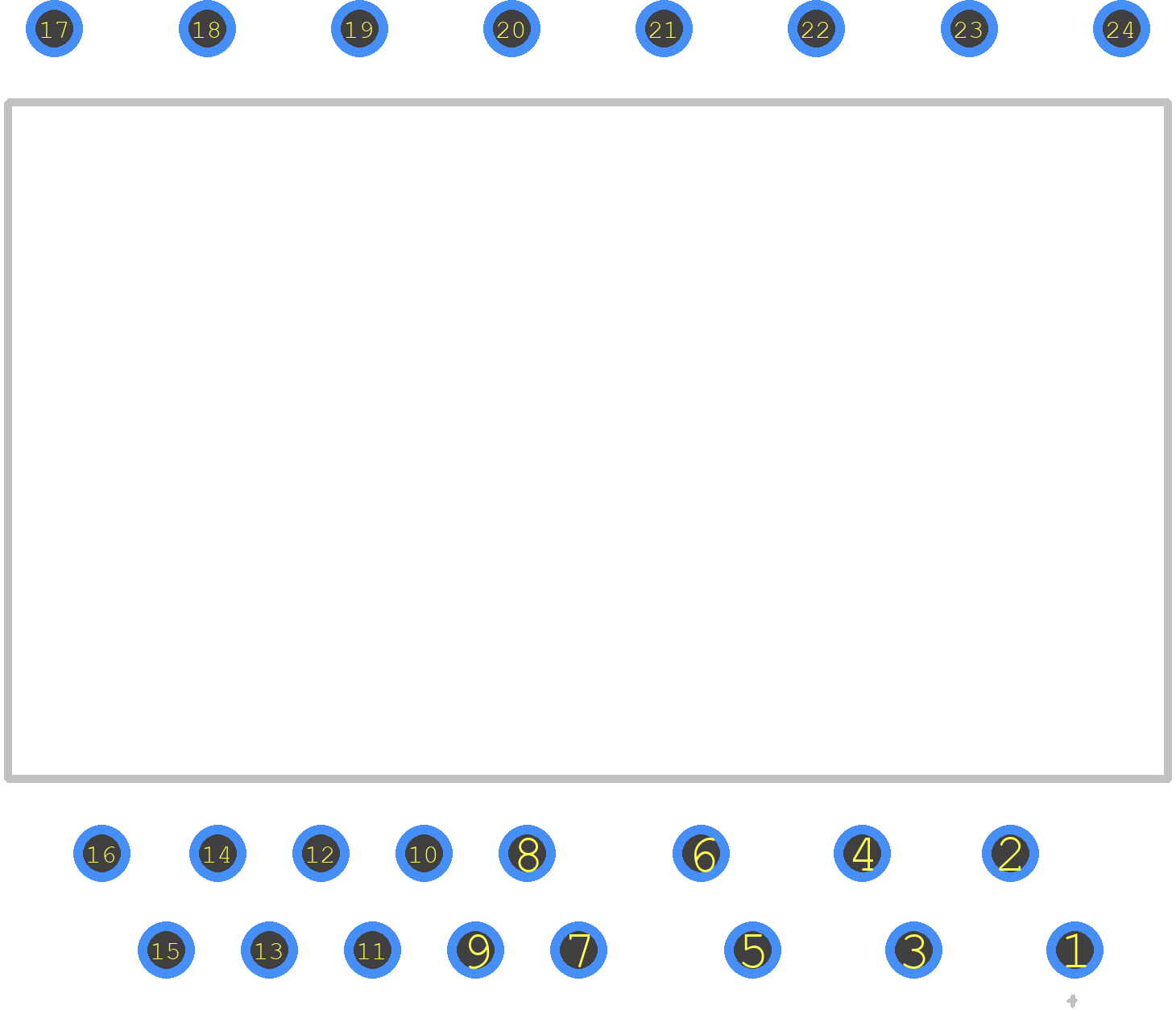

PCB Footprints
IKCM15F60GA - Infineon PCB footprint - Other - Other - IGCM15F60GA
click to zoom
3D Models
IKCM15F60GA - Infineon  - 3D model - Other - IGCM15F60GA
click to zoom

IKCM15F60GA Details

  • Manufacturer Part Number:

    IKCM15F60GA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • JESD-609 Code:

    e3

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM15F60GA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM15F60GA is -40°C to 150°C.
  • To ensure reliability, it is recommended to follow the thermal design guidelines provided in the datasheet, and to implement proper thermal management, such as heat sinks or cooling systems, to keep the junction temperature within the recommended range.
  • The recommended gate resistor value for the IKCM15F60GA is typically in the range of 10 ohms to 100 ohms, depending on the specific application and switching frequency. It is recommended to consult the datasheet and application notes for more detailed information.
  • To protect the IKCM15F60GA from overvoltage and overcurrent, it is recommended to implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits, such as TVS diodes and current sense resistors, in the system design.
  • To ensure optimal performance and reliability, it is recommended to follow the PCB layout and design guidelines provided in the datasheet and application notes, including proper placement of decoupling capacitors, routing of high-frequency signals, and thermal management.
