IKCM15H60GA - Infineon

Description: Dual In-Line Intelligent Power Module 3Φ -bridge 600V / 15A

Download IKCM15H60GA Model

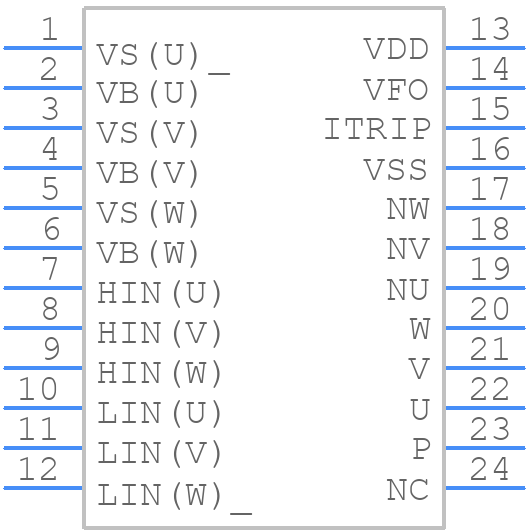

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

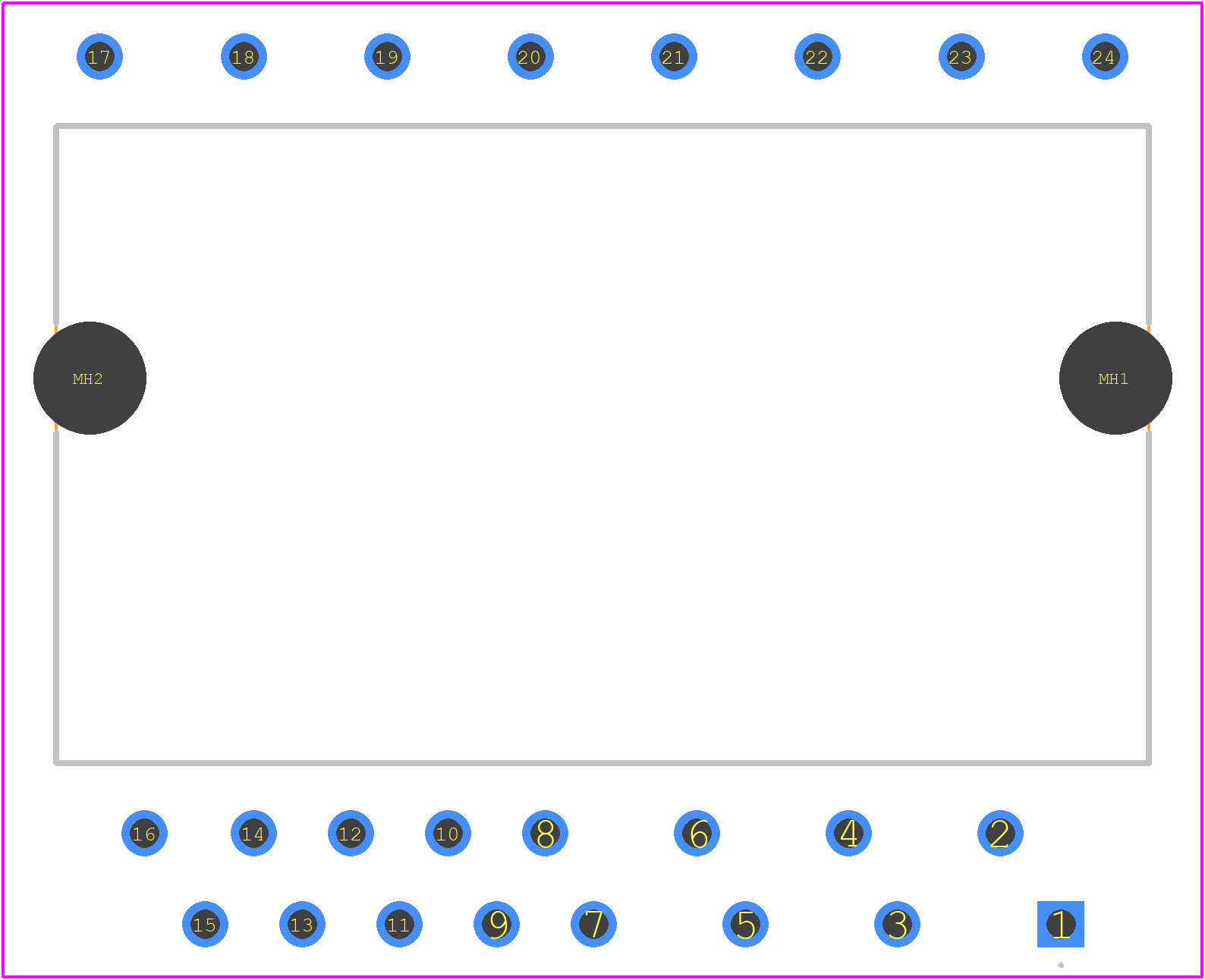

PCB Footprints
IKCM15H60GA - Infineon PCB footprint - Other - Other - 36mm x 21mm x 5.6mm
click to zoom
3D Models
IKCM15H60GA - Infineon  - 3D model - Other - 36mm x 21mm x 5.6mm
click to zoom

IKCM15H60GA Details

  • Manufacturer Part Number:

    IKCM15H60GA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Mainland China, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    24 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM15H60GA Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the IKCM15H60GA is 150°C, as specified in the datasheet. However, it's recommended to operate the module at a temperature below 125°C for optimal performance and reliability.
  • To ensure proper thermal management, it's essential to provide a good thermal interface between the module and the heat sink. Apply a thin layer of thermal interface material, and ensure the heat sink is properly mounted and secured. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
  • The recommended gate resistor value for the IKCM15H60GA is between 10 ohms and 20 ohms. However, the optimal value may vary depending on the specific application and switching frequency. It's recommended to consult the datasheet and application notes for more information.
  • Yes, the IKCM15H60GA can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive signals are synchronized to prevent uneven current sharing.
  • The maximum allowable voltage transient for the IKCM15H60GA is specified as 1200 V for a duration of 1 microsecond. However, it's recommended to limit the voltage transient to 1000 V or less to ensure reliable operation and prevent damage to the module.
