The thermal resistance (Rth(j-c)) of the IKCM15H60GAXKMA1 is 0.5 K/W, which is not explicitly mentioned in the datasheet but can be found in the application notes or through direct communication with Infineon support.
To ensure reliability, follow the recommended operating conditions, derating, and thermal management guidelines provided in the datasheet and application notes. Additionally, consider using thermal interface materials, heat sinks, and proper PCB design to minimize thermal resistance.
The recommended gate drive voltage for the IKCM15H60GAXKMA1 is 15 V, as specified in the datasheet. However, it's essential to ensure the gate drive voltage is within the recommended range to prevent damage or malfunction.
Yes, the IKCM15H60GAXKMA1 can be used in a parallel configuration to increase current handling. However, it's crucial to ensure proper synchronization, gate drive, and thermal management to avoid uneven current distribution and thermal runaway.
The maximum allowed dv/dt for the IKCM15H60GAXKMA1 is 10 kV/μs, as specified in the datasheet. Exceeding this value can lead to malfunction or damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IKCM15H60GAXKMA1 Overview

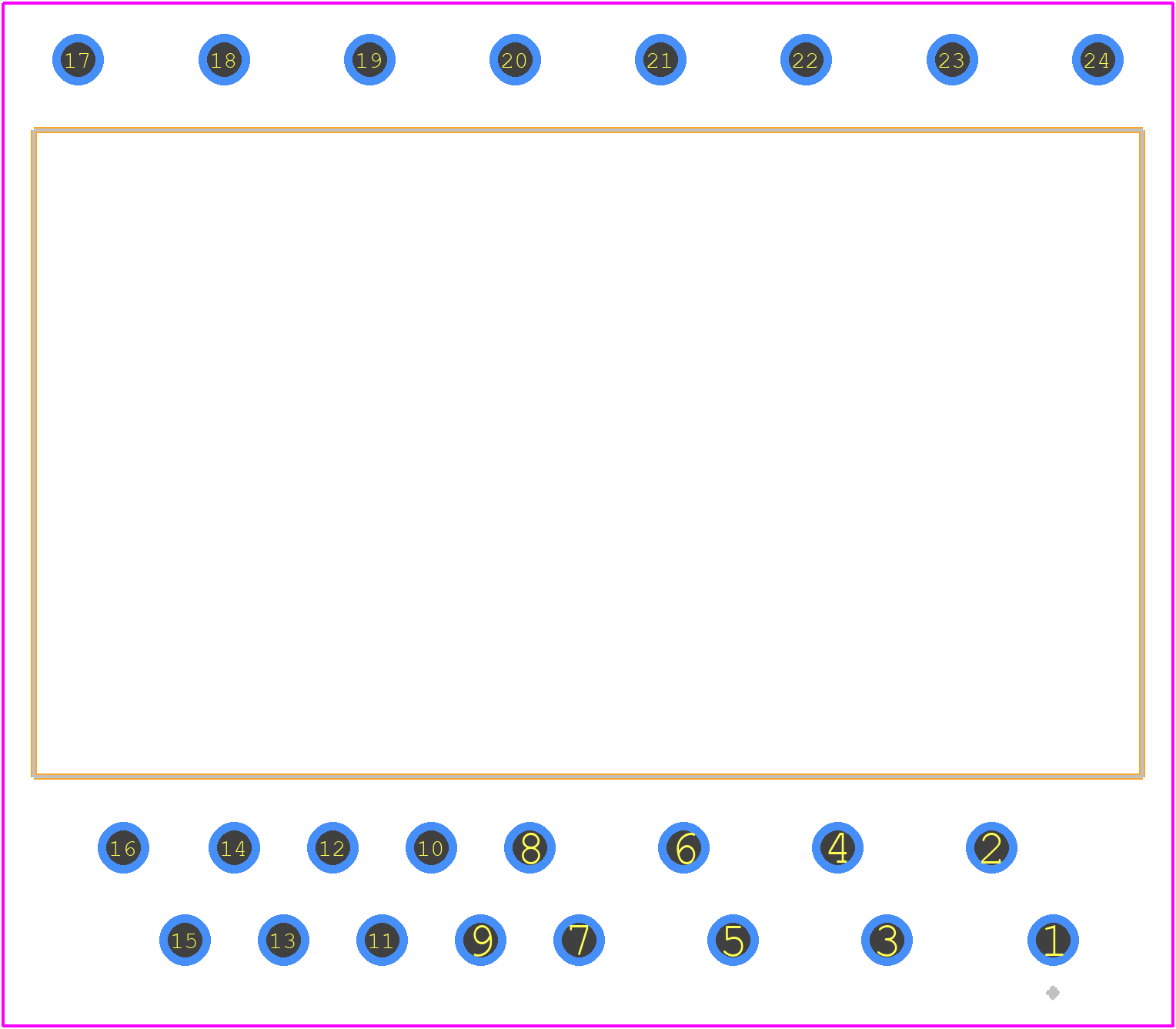

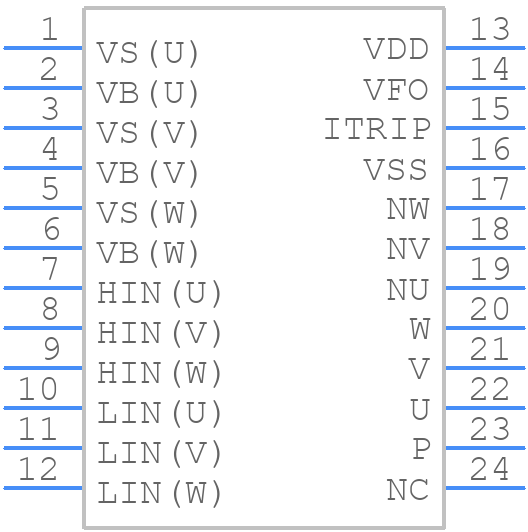

Use the download button to access the IKCM15H60GAXKMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IKCM1,
or try a keyword search, such as Motion Control Electronics
