The maximum operating temperature of the IKCM15H60GAXKMA2 is 150°C, as specified in the datasheet. However, it's recommended to operate the module within a temperature range of 25°C to 125°C for optimal performance and reliability.
To ensure proper thermal management, it's essential to provide adequate heat sinking, ensure good thermal interface material (TIM) between the module and heat sink, and maintain a low thermal resistance. Additionally, consider using a heat sink with a high thermal conductivity and a sufficient surface area to dissipate heat efficiently.
The recommended gate resistor value for the IKCM15H60GAXKMA2 is typically between 10 ohms to 20 ohms. However, the optimal value may vary depending on the specific application, switching frequency, and gate driver characteristics. It's recommended to consult the datasheet and application notes for more information.
Yes, the IKCM15H60GAXKMA2 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drivers are synchronized to prevent uneven current sharing and potential oscillations.
The maximum allowable voltage transient for the IKCM15H60GAXKMA2 is specified as 120% of the maximum rated voltage (Vces) for a duration of 10 microseconds. It's essential to ensure that the module is not subjected to voltage transients exceeding this limit to prevent damage or malfunction.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IKCM15H60GAXKMA2 Overview

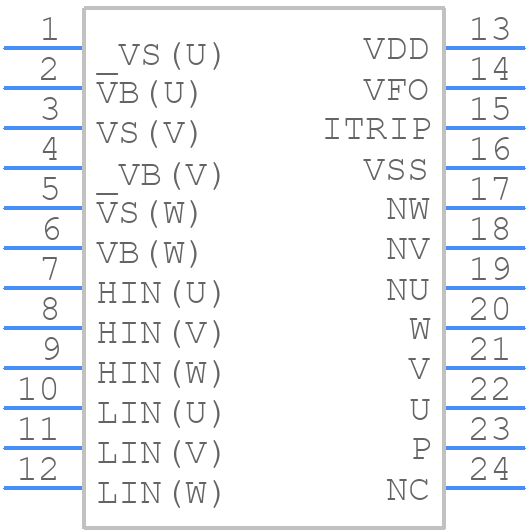

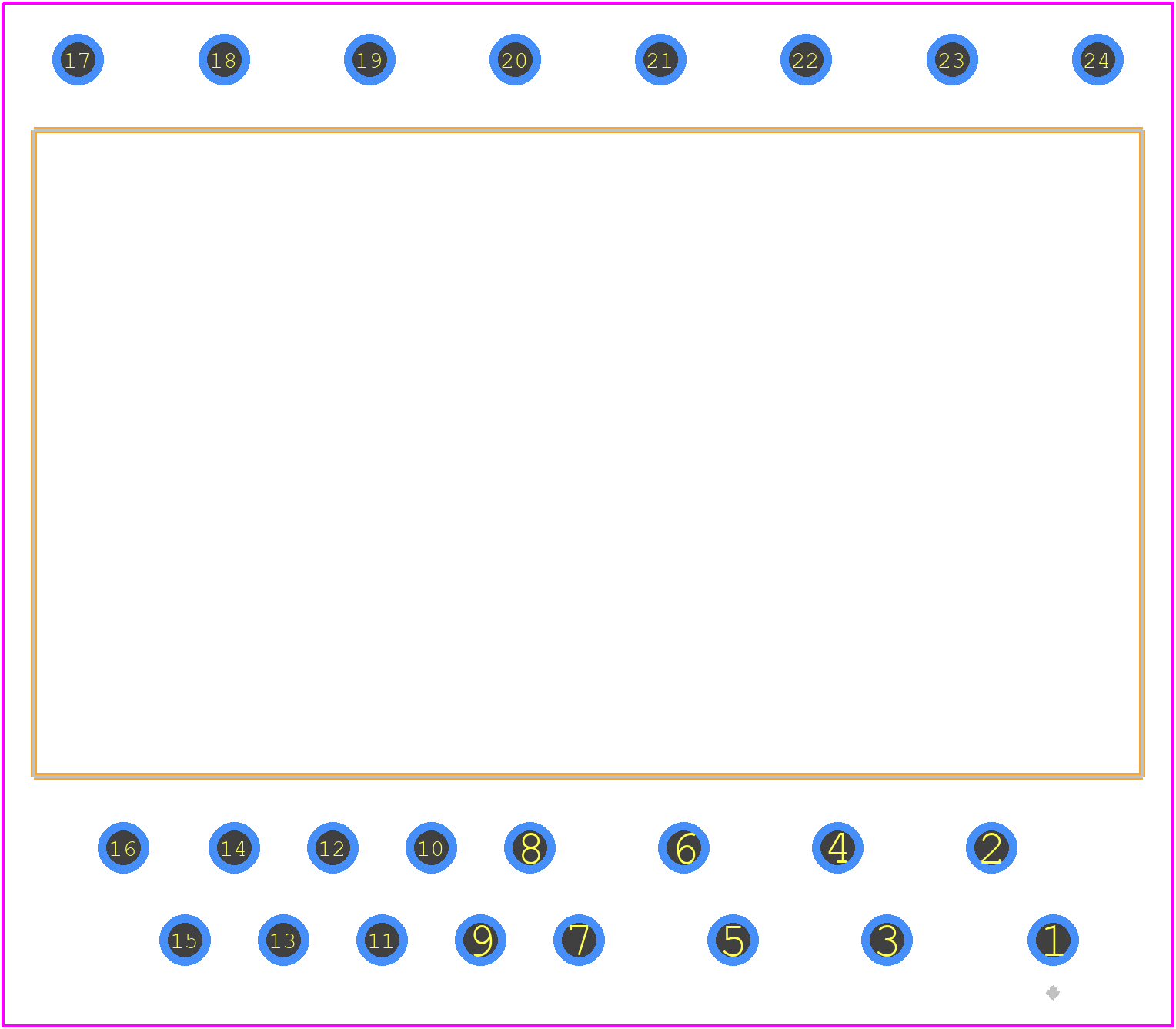

Use the download button to access the IKCM15H60GAXKMA2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IKCM1,
or try a keyword search, such as Motion Control Electronics
