IKCM15L60GA - Infineon

Description: Motor / Motion / Ignition Controllers & Drivers CIPOS MINI

Download IKCM15L60GA Model

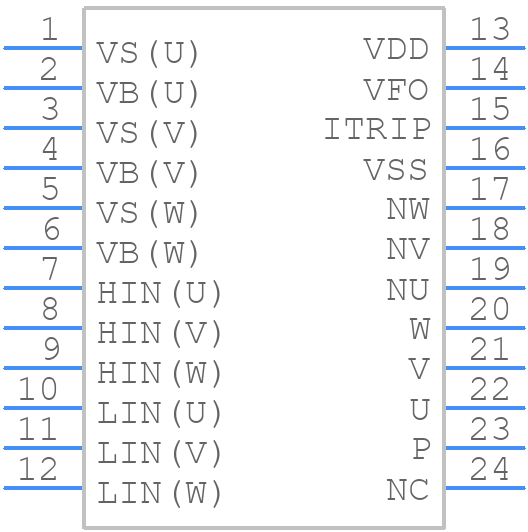

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

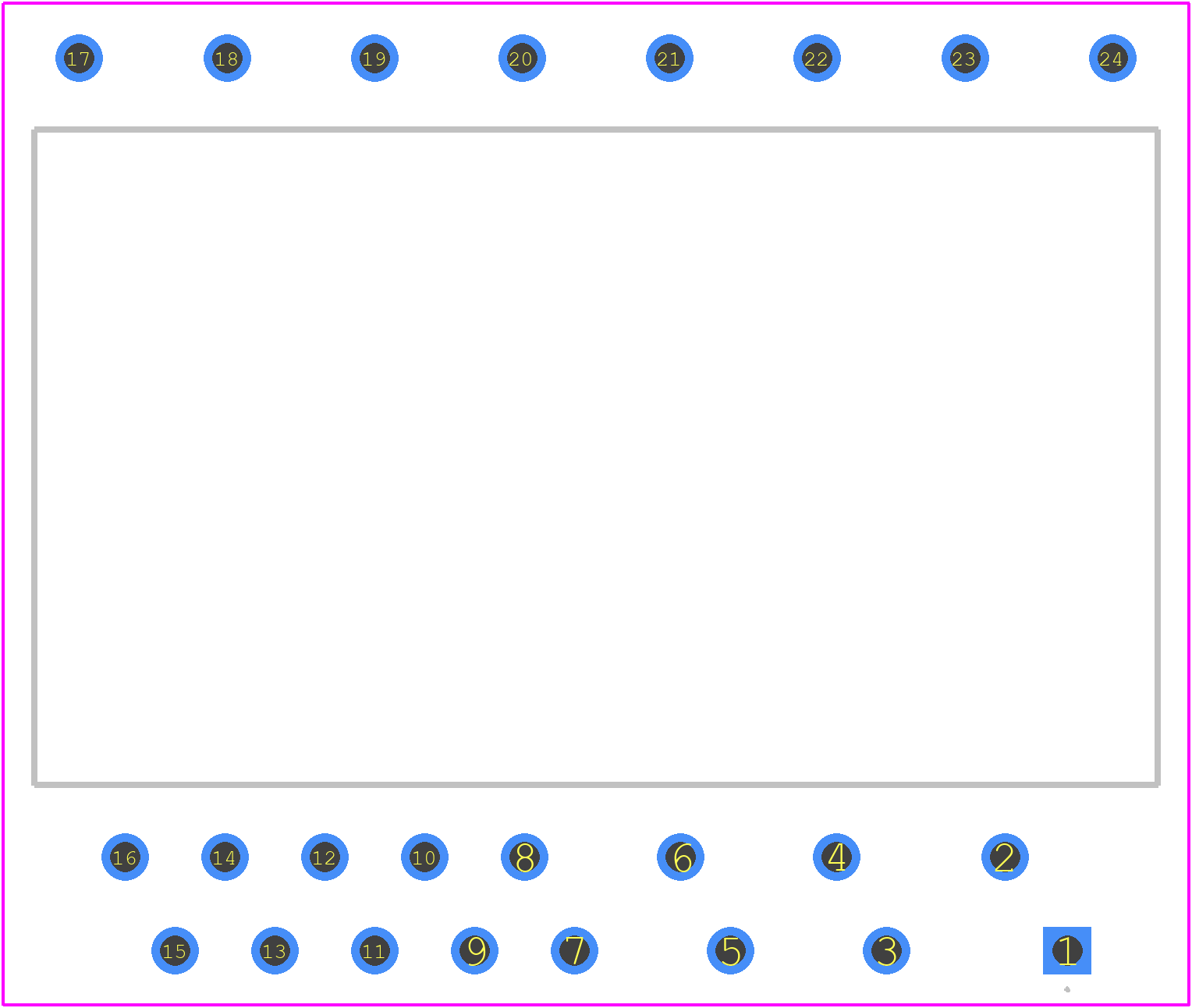

IKCM15L60GA - Infineon PCB footprint - Other - Other - IKCM15L60GA-3
click to zoom
3D Models
IKCM15L60GA - Infineon  - 3D model - Other - IKCM15L60GA-3
click to zoom

IKCM15L60GA Details

  • Manufacturer Part Number:

    IKCM15L60GA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM15L60GA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM15L60GA is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • To ensure proper cooling, it's recommended to attach a heat sink to the device and ensure good thermal contact. The heat sink should be designed to dissipate heat effectively, and the device should be mounted in a way that allows for good airflow. Additionally, the device's thermal pad should be connected to a solid ground plane to help dissipate heat.
  • The recommended gate drive voltage for the IKCM15L60GA is 15V, as specified in the datasheet. However, the device can tolerate gate drive voltages up to 20V, but this may affect the device's reliability and lifespan.
  • To protect the IKCM15L60GA from overvoltage and overcurrent conditions, it's recommended to use a voltage regulator or a DC-DC converter to regulate the input voltage. Additionally, overcurrent protection can be achieved using a current sense resistor and a comparator or an overcurrent protection IC. It's also recommended to use a fuse or a circuit breaker to protect the device from excessive current.
  • The recommended PCB layout and design considerations for the IKCM15L60GA include using a multi-layer PCB with a solid ground plane, keeping the power traces short and wide, and using a Kelvin connection for the gate driver. Additionally, it's recommended to use a decoupling capacitor close to the device to reduce noise and ringing.
