IKCM20L60GDXKMA1 - Infineon

Description: CIPOS™ Control Integrated POwer System Dual In-Line Intelligent Power Module 3Φ -bridge 600V / 20A.

Download IKCM20L60GDXKMA1 Model

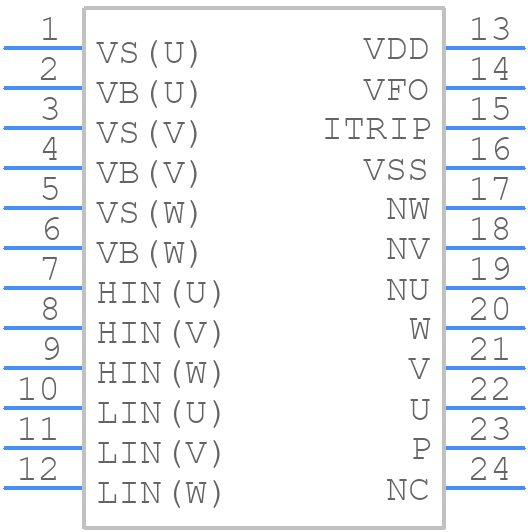

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

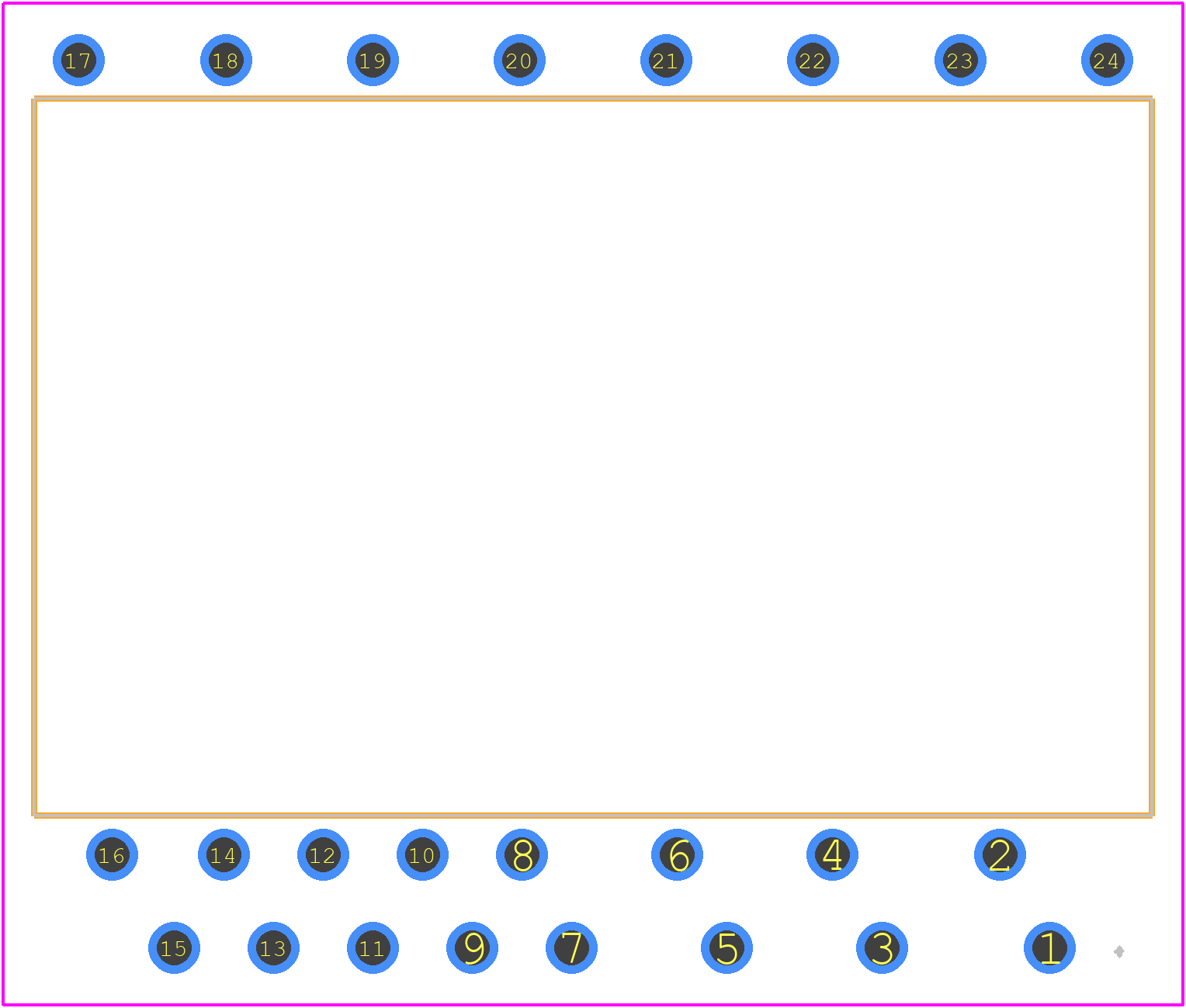

IKCM20L60GDXKMA1 - Infineon PCB footprint - Other - Other - DIP 36x21D
click to zoom
3D Models
IKCM20L60GDXKMA1 - Infineon  - 3D model - Other - DIP 36x21D
click to zoom

IKCM20L60GDXKMA1 Details

  • Manufacturer Part Number:

    IKCM20L60GDXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    40 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM20L60GDXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM20L60GDXKMA1 is -40°C to 150°C.
  • Proper thermal management can be achieved by ensuring good heat sink contact, using thermal interface materials, and maintaining a clean and dust-free environment.
  • The recommended gate resistor value for the IKCM20L60GDXKMA1 is typically in the range of 10 ohms to 20 ohms, depending on the specific application and switching frequency.
  • Yes, the IKCM20L60GDXKMA1 can be used in a parallel configuration, but it requires careful consideration of the module's current sharing and thermal management.
  • The maximum allowable voltage transient for the IKCM20L60GDXKMA1 is typically 1.5 times the maximum rated voltage, but this may vary depending on the specific application and operating conditions.
