IKCM20R60GDXKMA1 - Infineon

Description: Power Driver Module IGBT 2 Phase 600 V 20 A 24-PowerDIP Module (1.028", 26.10mm)

Download IKCM20R60GDXKMA1 Model

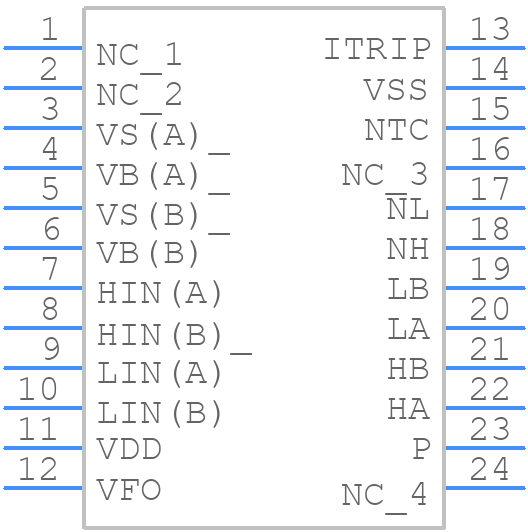

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

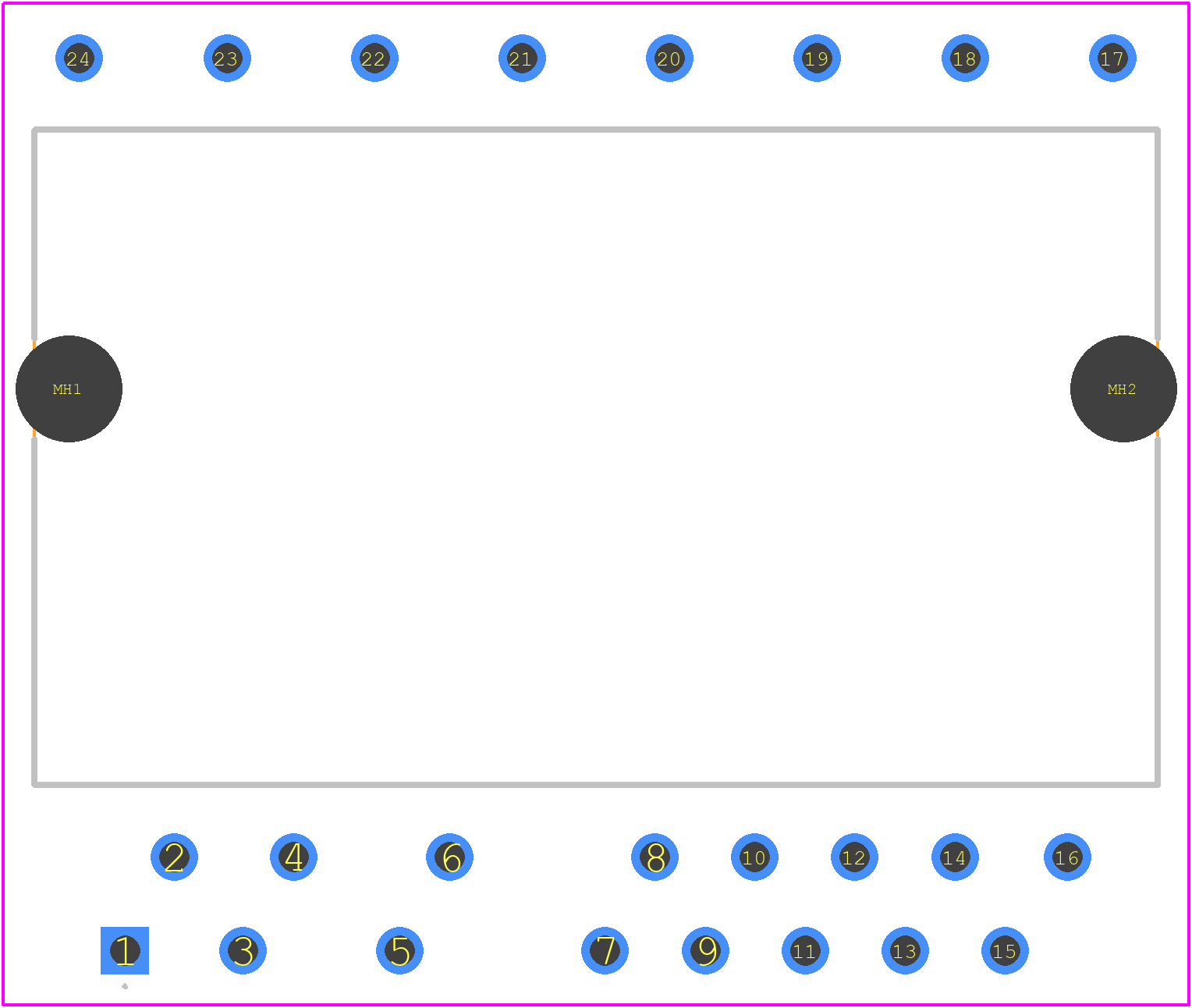

PCB Footprints
IKCM20R60GDXKMA1 - Infineon PCB footprint - Other - Other - IKCM20R60GDXKMA1-1
click to zoom
3D Models
IKCM20R60GDXKMA1 - Infineon  - 3D model - Other - IKCM20R60GDXKMA1-1
click to zoom

IKCM20R60GDXKMA1 Details

  • Manufacturer Part Number:

    IKCM20R60GDXKMA1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    DIP-24

  • Country Of Origin:

    Austria, Malaysia, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Analog IC - Other Type:

    2-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDMA-T24

  • Length:

    36 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    40 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    5.6 mm

  • Supply Voltage-Max (Vsup):

    18.5 V

  • Supply Voltage-Min (Vsup):

    14.5 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Width:

    21 mm

IKCM20R60GDXKMA1 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the IKCM20R60GDXKMA1 is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within a temperature range of -20°C to 125°C for optimal performance and reliability.
  • Proper thermal management is crucial for the IKCM20R60GDXKMA1. Ensure good thermal contact between the module and the heat sink, use a suitable thermal interface material, and maintain a low thermal resistance between the module and the heat sink. Additionally, ensure good airflow around the heat sink to dissipate heat efficiently.
  • The recommended gate resistance value for the IKCM20R60GDXKMA1 is between 10 ohms and 20 ohms. This value helps to reduce electromagnetic interference (EMI) and ensures stable operation of the IGBT.
  • Yes, the IKCM20R60GDXKMA1 can be used in a parallel configuration to increase the current handling capability. However, it's essential to ensure that the modules are properly matched, and the gate drive circuits are designed to handle the increased current and voltage requirements.
  • The recommended switching frequency for the IKCM20R60GDXKMA1 depends on the specific application and operating conditions. However, as a general guideline, Infineon recommends a maximum switching frequency of 20 kHz for this module.
