IL3585 - NVE

Description: DG ISO 2.5KV RS422/RS485 16SOIC

Download IL3585 Model

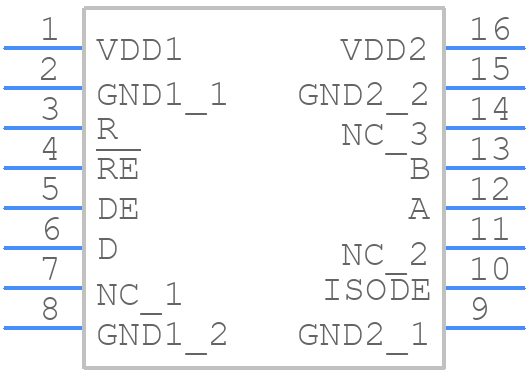

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IL3585 - NVE PCB footprint - Small Outline Packages - Small Outline Packages - 0.3" 16-pin SOIC Package
click to zoom
3D Models
IL3585 - NVE  - 3D model - Small Outline Packages - 0.3" 16-pin SOIC Package
click to zoom

IL3585 Details

  • Manufacturer Part Number:

    IL3585

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NVE Corporation

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.00001 A

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e0

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.3 V

  • Output Low Current-Max:

    0.00002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    225

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

IL3585 Frequently Asked Questions (FAQs)

  • NVE recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and GND pins. The input and output tracks should be kept short and away from noise sources. A sample layout is available in the IL3585 evaluation board documentation.
  • The IL3585 requires a stable VCC supply between 4.5V and 5.5V. A 0.1uF decoupling capacitor should be placed close to the VCC pin, and a 10kΩ resistor should be connected between the VCC and GND pins to ensure proper biasing.
  • The maximum allowable current through the output pins of the IL3585 is 20mA. Exceeding this current may cause damage to the device or affect its performance.
  • The IL3585 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. A minimum of 1kΩ resistance should be placed in series with the input pins to prevent ESD damage.
  • The IL3585 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It is recommended to derate the device's performance by 0.5% per degree Celsius above 85°C.
