Vishay recommends a PCB layout with a thermal pad connected to a large copper area to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a heat sink.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a solder flux to the pins. Avoid using excessive soldering temperature or time, as it can damage the component.
The maximum allowed voltage derating for the ILQ32-X007 is 80% of the rated voltage. This means that if the rated voltage is 1000 V, the maximum allowed voltage derating would be 800 V.
While the ILQ32-X007 is not specifically designed for high-frequency applications, it can be used up to 100 kHz with proper PCB layout and component selection. However, it's essential to evaluate the component's performance in your specific application and consider other options if necessary.
To handle the ILQ32-X007's ESD sensitivity, use proper ESD protection measures during handling, storage, and assembly. This includes using ESD-safe packaging, wrist straps, and mats, as well as following proper soldering and assembly procedures.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILQ32-X007 Overview

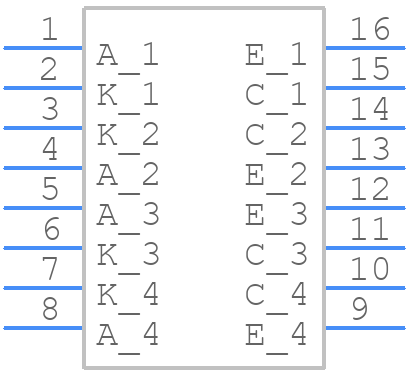

Use the download button to access the ILQ32-X007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ32,
or try a keyword search, such as Optocoupler
