ILQ32-X009T - Vishay

Description: Transistor Output Optocouplers Photodarlington Out Quad CTR > 500%

Download ILQ32-X009T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

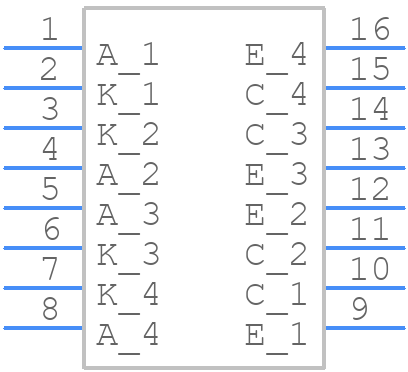

ILQ32-X009T - Vishay - PCB symbol
click to zoom
PCB Footprints
ILQ32-X009T - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - SMD-16, option 9
click to zoom
3D Models
ILQ32-X009T - Vishay - 3D model - Small Outline Packages - SMD-16, option 9
click to zoom

ILQ32-X009T Details

  • Manufacturer Part Number:

    ILQ32-X009T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    30 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Nom:

    500%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Isolation Voltage-Max:

    5300 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER
