The recommended storage temperature range for ILQ615-1X009 is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
While the ILQ615-1X009 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
The maximum allowable voltage stress on the ILQ615-1X009 is 1.5 times the rated voltage (1500V) for a short duration (< 1 second), as per Vishay's application notes for voltage stress testing.
To ensure the reliability of the ILQ615-1X009 in high-reliability applications, follow Vishay's recommended guidelines for derating, thermal management, and PCB design, and consider using a qualified and certified device from a reputable supplier.
While the ILQ615-1X009 is designed for high-voltage applications, it's not optimized for high-frequency operation (> 1 MHz). For high-frequency applications, consider using a device specifically designed for high-frequency operation, such as Vishay's FRED Pt or VS-EP series.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ILQ615-1X009 Overview

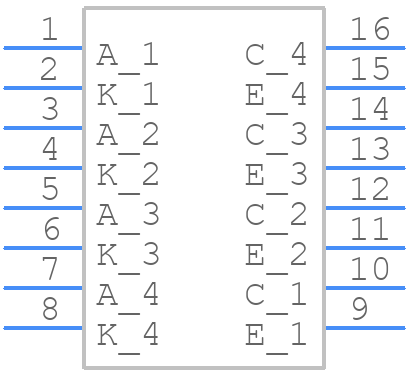

Use the download button to access the ILQ615-1X009 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ61,
or try a keyword search, such as Optocoupler
