ILQ615-2X007 - Vishay

Description: Transistor Output Optocouplers Phototransistor Out Quad CTR > 63-125%

Download ILQ615-2X007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

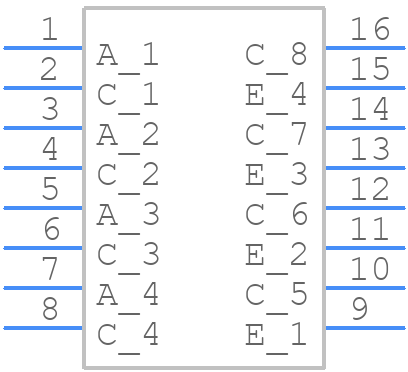

Symbol
ILQ615-2X007 - Vishay - PCB symbol
click to zoom
PCB Footprints
ILQ615-2X007 - Vishay PCB footprint - Small Outline Packages - Small Outline Packages - ILQ615-2X007
click to zoom
3D Models
ILQ615-2X007 - Vishay - 3D model - Small Outline Packages - ILQ615-2X007
click to zoom

ILQ615-2X007 Details

  • Manufacturer Part Number:

    ILQ615-2X007

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, SMD, 16 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    22%

  • Current Transfer Ratio-Nom:

    80%

  • Dark Current-Max:

    50 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

ILQ615-2X007 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for ILQ615-2X007 is -40°C to 125°C, as per Vishay's general guidelines for storage and handling of semiconductor devices.
  • While the ILQ615-2X007 is designed to operate in a wide range of temperatures, it's not recommended for use in high-humidity environments (> 80% RH) without proper protection, such as conformal coating or hermetic sealing, to prevent moisture-related failures.
  • The maximum allowable voltage stress on the ILQ615-2X007 is 1.5 times the rated voltage (1500V) for a duration of 1 minute, as per Vishay's testing and validation procedures.
  • Yes, the ILQ615-2X007 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 20 seconds.
  • The typical thermal resistance (Rth) of the ILQ615-2X007 is around 10°C/W (junction-to-ambient) and 5°C/W (junction-to-case), depending on the specific application and thermal management design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILQ615-2X007 Overview

Use the download button to access the ILQ615-2X007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ61, or try a keyword search, such as Optocoupler
