ILQ615-4 - Vishay

Description: Optocoupler DC-IN 4-CH Trans DC-OUT

Download ILQ615-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

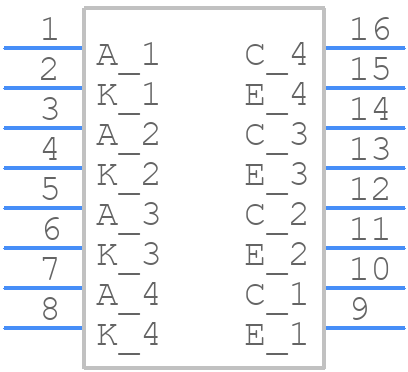

ILQ615-4 - Vishay - PCB symbol
click to zoom
PCB Footprints

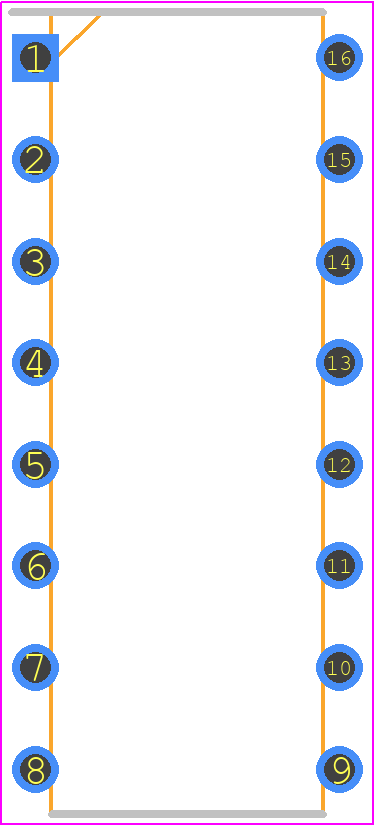

ILQ615-4 - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-16 **
click to zoom
3D Models
ILQ615-4 - Vishay - 3D model - Dual-In-Line Packages - DIP-16 **
click to zoom

ILQ615-4 Details

  • Manufacturer Part Number:

    ILQ615-4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    56%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.06 A

  • Forward Voltage-Max:

    1.3 V

  • Isolation Voltage-Max:

    5300 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

ILQ615-4 Frequently Asked Questions (FAQs)

  • The recommended storage condition for ILQ615-4 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 125°C.
  • Handle the ILQ615-4 by the body, avoid touching the leads or the glass, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
  • The maximum allowable voltage for the ILQ615-4 is 1500 V, but it's recommended to operate within the specified voltage rating of 1000 V to ensure reliability and longevity.
  • Yes, the ILQ615-4 is designed to operate in high-temperature applications up to 150°C, but the voltage derating curve should be consulted to ensure safe operation.
  • Use a soldering iron with a temperature of 250°C to 300°C, and a solder with a melting point of 180°C to 220°C. Avoid applying excessive heat or mechanical stress during soldering.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ILQ615-4 Overview

Use the download button to access the ILQ615-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ILQ61, or try a keyword search, such as Optocoupler
