ILQ621GB Frequently Asked Questions (FAQs)

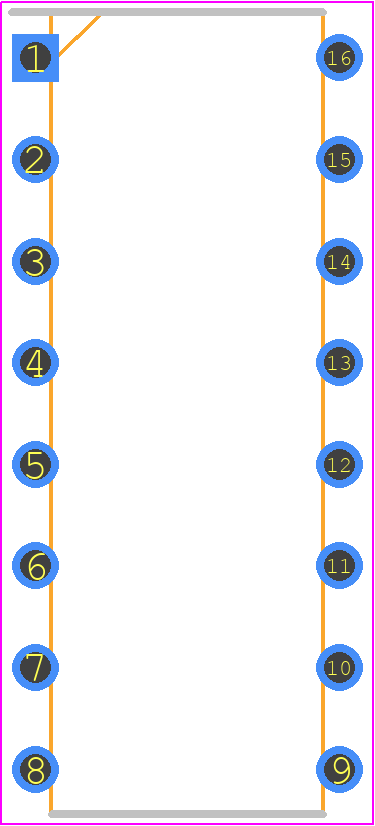

• What is the recommended PCB footprint for the ILQ621GB?
  The recommended PCB footprint for the ILQ621GB is a rectangular pad with a size of 1.5 mm x 0.8 mm, with a 0.3 mm radius corner. The pad should be centered on the component and have a solder mask defined gap of 0.1 mm.
• How do I handle the thermal pad of the ILQ621GB?
  The thermal pad of the ILQ621GB should be connected to a large copper area on the PCB to dissipate heat efficiently. A thermal via or a thermal pad on the PCB is recommended to improve heat dissipation.
• What is the maximum operating temperature range for the ILQ621GB?
  The maximum operating temperature range for the ILQ621GB is -40°C to 150°C. However, the device can be operated up to 175°C for a short duration (less than 1000 hours) with a derated current rating.
• Can I use the ILQ621GB in a high-reliability application?
  Yes, the ILQ621GB is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow the recommended operating conditions and derating guidelines to ensure the device operates within its specified limits.
• How do I ensure the ILQ621GB is properly soldered to the PCB?
  To ensure proper soldering of the ILQ621GB to the PCB, use a soldering iron with a temperature of 260°C to 280°C. Apply a small amount of solder paste to the PCB pads and place the component on the PCB. Use a reflow oven or a hot air gun to solder the component. Avoid overheating the component or the PCB.
