- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for IM564-X6D
- Part Number IM564-X6D
- Manufacturer Infineon
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Other

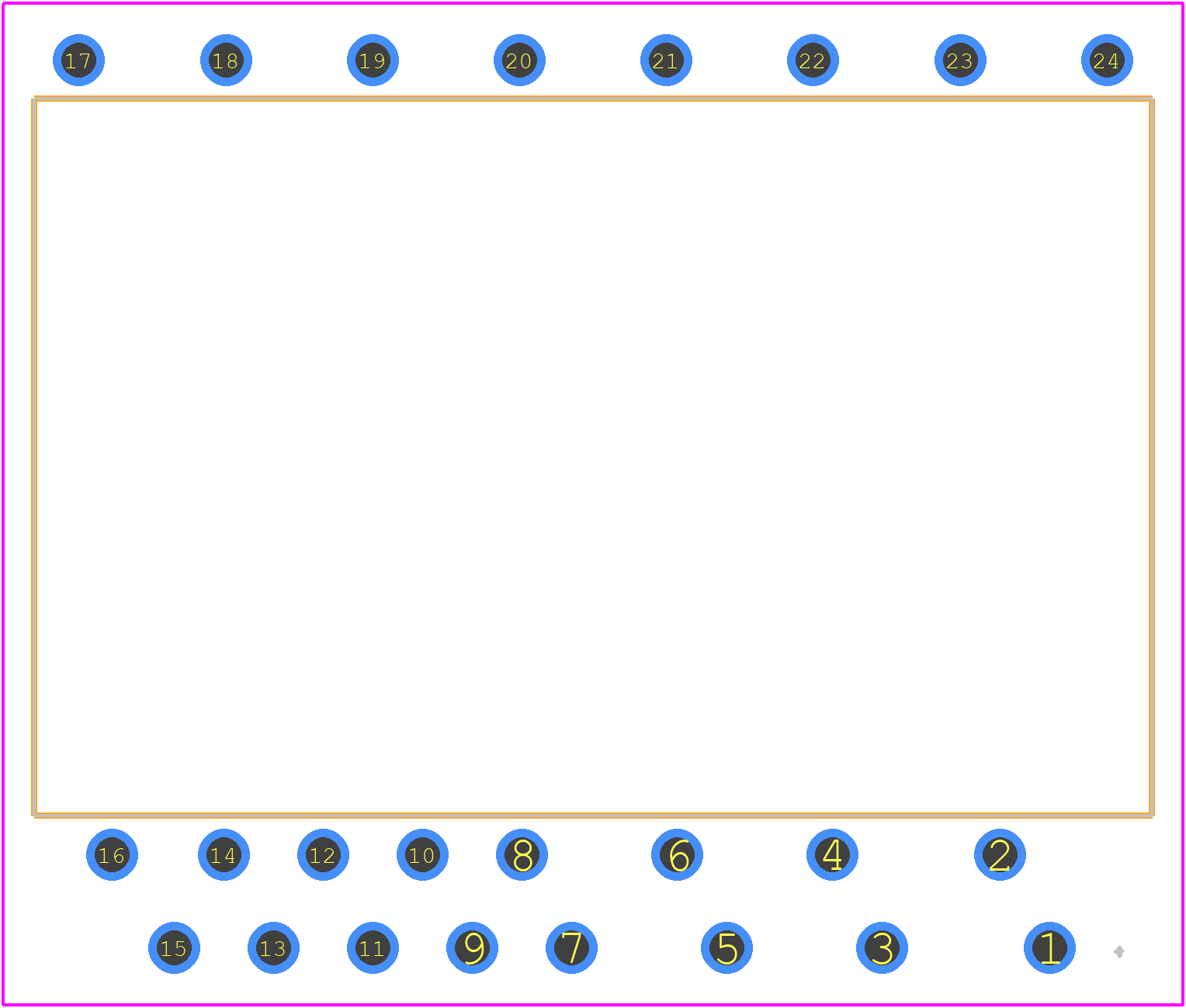

- Footprint Name Other - DIP 36x21D
- Released Date Feb 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
IM564-X6D Details
-
Manufacturer Part Number:
IM564-X6D
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Germany, Malaysia, South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Date Of Intro:
2020-02-12
-
Manufacturer:
Infineon Technologies AG
-
YTEOL:
9
-
Analog IC - Other Type:
AC MOTOR CONTROLLER
Trust Checks
Expert Contribution
System Verified
Community Approved
IM564-X6D Overview

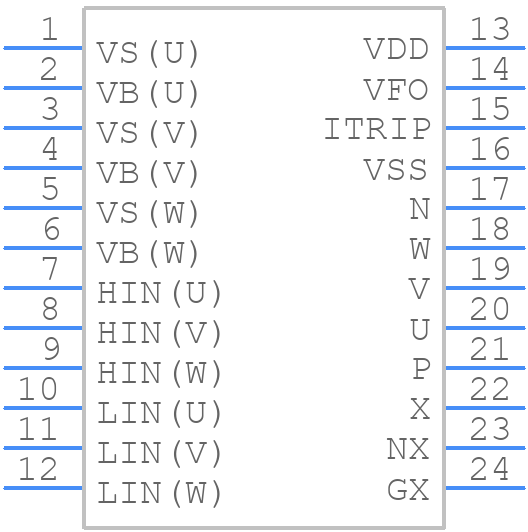

Use the download button to access the IM564-X6D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IM564,
or try a keyword search, such as Motion Control Electronics
