Infineon provides a recommended PCB layout in their application note AN2013-03, which includes guidelines for thermal vias, copper thickness, and component placement to ensure optimal thermal performance.
Infineon recommends using a gate driver with a minimum output current of 2A and a voltage rating that matches the IGBT's gate-emitter voltage. The driver should also have a high common-mode transient immunity (CMTI) to ensure reliable operation.
The maximum allowed overcurrent is typically specified in the datasheet as a percentage of the nominal current rating. To protect the module, use a fast-acting fuse or a current-sensing circuit that can detect overcurrent conditions and trigger a shutdown or alarm.
Follow Infineon's guidelines for EMC design, including using a shielded enclosure, minimizing loop areas, and using filters or chokes to reduce electromagnetic interference (EMI). Additionally, ensure that the IGBT module is properly decoupled from the power supply and other components.
For high-power applications, a forced-air cooling system or a liquid cooling system is recommended. The cooling system should be designed to maintain a maximum junction temperature of 150°C or lower, depending on the specific application requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IM564X6DXKMA1 Overview

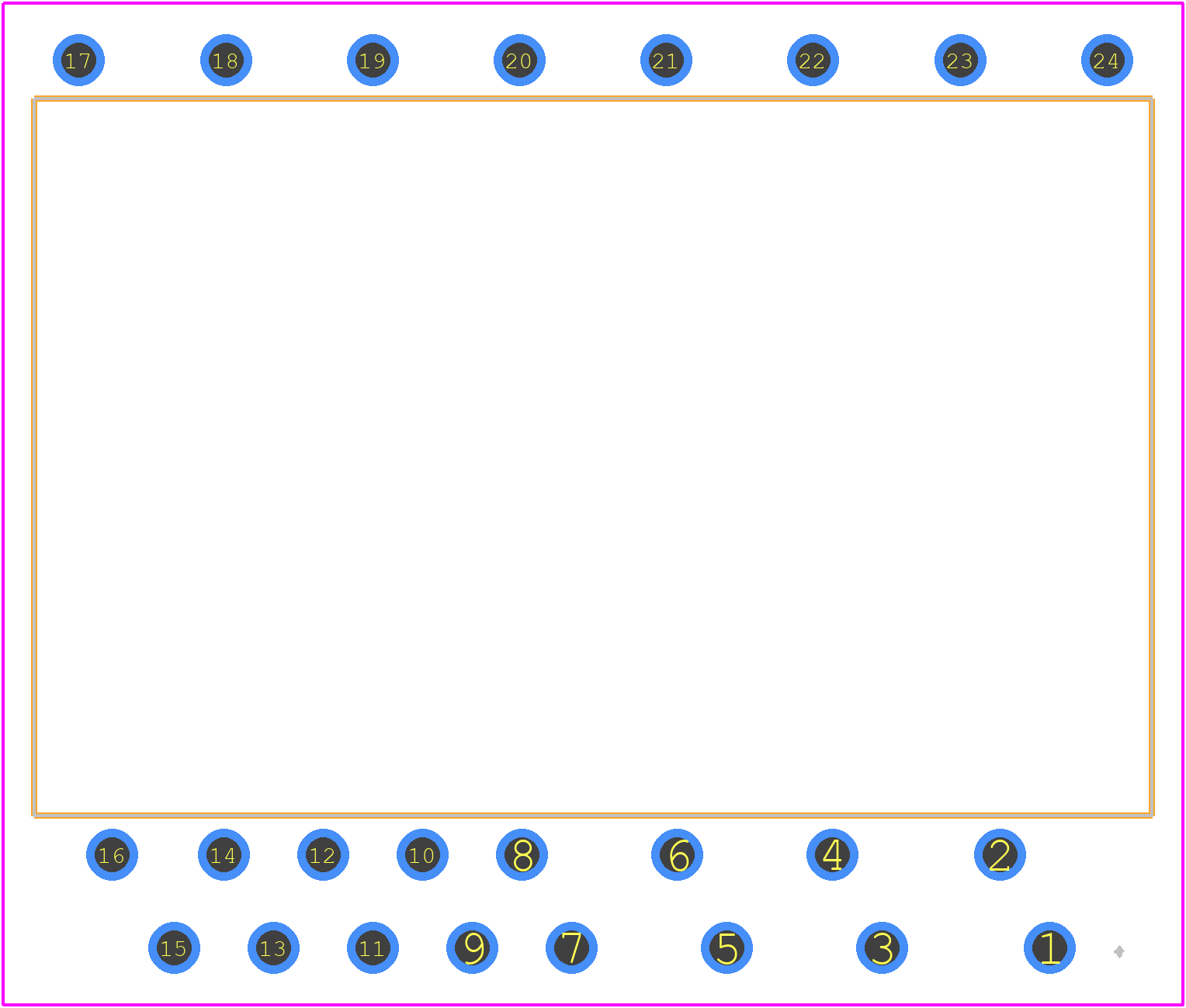

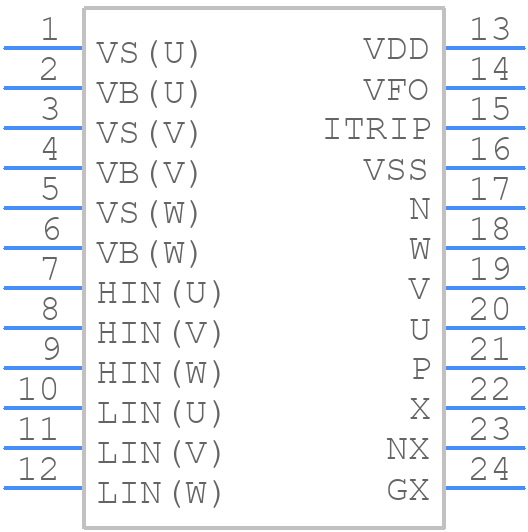

Use the download button to access the IM564X6DXKMA1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IM564,
or try a keyword search, such as Motion Control Electronics
