ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
The IMD6AT108 requires a stable voltage supply and proper biasing to operate within its specifications. Ensure the input voltage is within the recommended range (4.5V to 5.5V), and the bias resistors are chosen to set the desired output voltage and current. Consult the datasheet for specific biasing recommendations.
The maximum allowable power dissipation for the IMD6AT108 is 1.5W. Exceeding this limit can cause the device to overheat, leading to reduced performance, reliability issues, or even failure. Ensure proper thermal design and heat dissipation to stay within this limit.
The IMD6AT108 is rated for operation up to 125°C (TJ). However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 125°C, consider using a different device or implementing additional cooling measures.
Handle the IMD6AT108 with care to prevent ESD damage. Use an anti-static wrist strap, mat, or other ESD protection devices when handling the component. Ensure the PCB design includes ESD protection circuits, such as TVS diodes or resistors, to protect the device from voltage spikes.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IMD6AT108 Overview

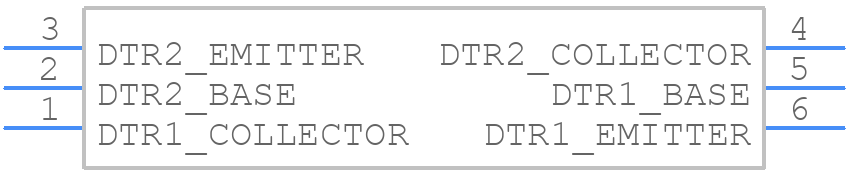

Use the download button to access the IMD6AT108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IMD6A,
or try a keyword search, such as Small Signal Bipolar Transistors
