IMH11AT110 - ROHM Semiconductor

Description: NPN+NPN, SOT-457, Dual Digital Transistor (Bias Resistor Built-in Transistor)

Download IMH11AT110 Model

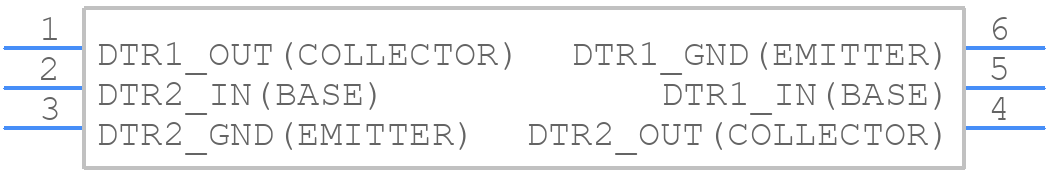

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IMH11AT110 - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - IMH11AT110
click to zoom
3D Models
IMH11AT110 - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - IMH11AT110
click to zoom

IMH11AT110 Details

  • Manufacturer Part Number:

    IMH11AT110

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74

  • Package Description:

    SC-74, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT-IN BIAS RESISTOR RATIO IS 1

  • Collector Current-Max (IC):

    0.05 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e1

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

  • VCEsat-Max:

    0.3 V

IMH11AT110 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Ensure that the device is operated within the recommended temperature range (TJ = -40°C to 150°C). Use a heat sink or thermal interface material to reduce thermal resistance. Monitor the device's junction temperature to prevent overheating.
  • The maximum allowable voltage on the input pins is 5.5V. Exceeding this voltage may cause damage to the device.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input lines to protect the device from electrostatic discharge. Follow proper handling and storage procedures to prevent ESD damage.
  • Store the device in a dry, cool place away from direct sunlight. Avoid exposing the device to moisture, extreme temperatures, or physical stress.
