A recommended PCB layout for optimal thermal performance of the IMH3AT110 includes a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it is recommended to use a thermal via array to connect the thermal pad to the copper area.
To ensure the reliability of the IMH3AT110 in high-temperature applications, it is recommended to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, it is important to ensure proper thermal design, including a heat sink or thermal interface material, to keep the junction temperature within the recommended range.
The recommended soldering profile for the IMH3AT110 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It is also recommended to use a soldering iron with a temperature range of 350-400°C to ensure reliable solder joints.
To prevent damage to the IMH3AT110 during assembly, it is recommended to handle the device by the package body, avoiding touching the leads or die. Additionally, it is important to use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
When using the IMH3AT110 in high-humidity environments, it is recommended to take precautions to prevent moisture ingress, such as using a moisture-resistant coating or conformal coating on the PCB. Additionally, it is important to ensure that the device is properly sealed and that the PCB is designed to prevent moisture accumulation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
IMH3AT110 Overview

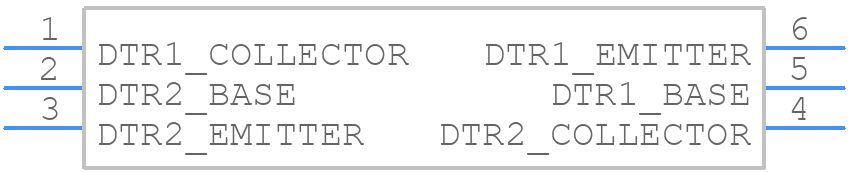

Use the download button to access the IMH3AT110 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like IMH3A,
or try a keyword search, such as Small Signal Bipolar Transistors
