IMTA65R075M2HXTMA1 - Infineon

Description: Built on Infineon’s robust 2nd generation Silicon Carbide trench technology, CoolSiC™ MOSFET delivers unparalleled performance, superior reliability, and great ease of use, N-Channel 650 V, 30A, 141W, Surface Mount PG-LHSOF-4-1, 75 mΩ, 14.9 nC, -55°C to 175°C

Download IMTA65R075M2HXTMA1 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this IMTA65R075M2HXTMA1 model

Email notifications will be applied after download.

Send part feedback

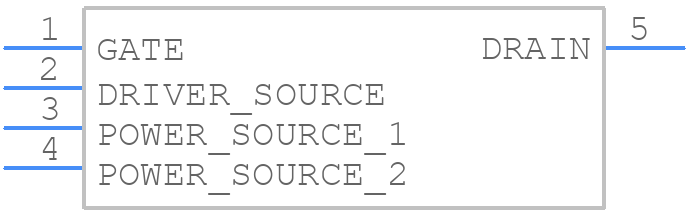

Symbol

IMTA65R075M2HXTMA1 - Infineon - PCB symbol

PCB Footprints

IMTA65R075M2HXTMA1 - Infineon PCB footprint - Other - Other - PG-LHSOF-4-U01

Datasheet Download Datasheet
Stock & Prices Price & Stock for IMTA65R075M2HXTMA1
Part Number IMTA65R075M2HXTMA1
Manufacturer Infineon
Pin Count 5
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - PG-LHSOF-4-U01
Released Date May 30, 2026
Last Modified Date May 30, 2026 11:19 AM UTC
Pinout / Pin List Click Here (Member Only)

IMTA65R075M2HXTMA1 Details

Manufacturer Part Number:
IMTA65R075M2HXTMA1
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

IMTA65R075M2HXTMA1 Overview

Use the download button to access the IMTA65R075M2HXTMA1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like IMTA6, or try a keyword search, such as SRAMs
