IMZ1AT108 - ROHM Semiconductor

Description: NPN+PNP, SOT-457, General Purpose Amplification Transistor,50V,150mA,-55 to +150 ℃

Download IMZ1AT108 Model

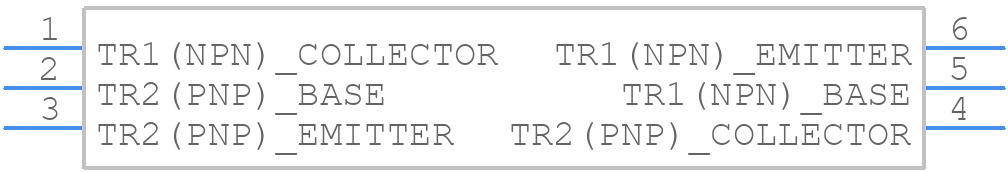

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
IMZ1AT108 - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SMT6_2026
click to zoom
3D Models
IMZ1AT108 - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - SMT6_2026
click to zoom

IMZ1AT108 Details

  • Manufacturer Part Number:

    IMZ1AT108

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SC-74

  • Package Description:

    SC-74, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.15 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    120

  • JESD-30 Code:

    R-PDSO-G6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    180 MHz

  • VCEsat-Max:

    0.4 V

IMZ1AT108 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for IMZ1AT108 is -40°C to 125°C.
  • To ensure the stability of the output voltage, it is recommended to use a ceramic capacitor with a capacitance of 1uF or more between the VIN and GND pins, and a capacitor with a capacitance of 2.2uF or more between the VOUT and GND pins.
  • The maximum input voltage that IMZ1AT108 can handle is 36V.
  • The output voltage of IMZ1AT108 can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected between the FB and VOUT pins.
  • The quiescent current of IMZ1AT108 is typically 1.5mA.
