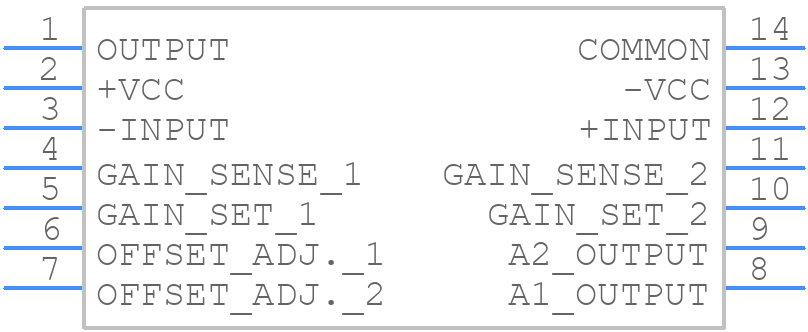

INA101AG - Texas Instruments

INA101AG Details

• Manufacturer Part Number:

  INA101AG

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  DIP

• Pin Count:

  14

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  1989-01-01

• Manufacturer:

  Texas Instruments

• YTEOL:

  1

• Amplifier Type:

  INSTRUMENTATION AMPLIFIER

• Average Bias Current-Max (IIB):

  0.03 µA

• Bandwidth (3dB)-Nom:

  0.3 MHz

• Bias Current-Max (IIB) @25C:

  0.02 µA

• Common-mode Reject Ratio-Min:

  106 dB

• Input Offset Current-Max (IIO):

  0.03 µA

• Input Offset Voltage-Max:

  25 µV

• JESD-30 Code:

  R-CDIP-T14

• JESD-609 Code:

  e4

• Length:

  18.545 mm

• Neg Supply Voltage Limit-Max:

  -20 V

• Neg Supply Voltage-Nom (Vsup):

  -15 V

• Non-linearity-Max:

  0.005%

• Number of Functions:

  1

• Number of Terminals:

  14

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.45 mm

• Slew Rate-Nom:

  0.4 V/us

• Subcategory:

  Instrumentation Amplifier

• Supply Current-Max:

  17 mA

• Supply Voltage Limit-Max:

  20 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Finish:

  Gold (Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Voltage Gain-Max:

  1000

• Voltage Gain-Min:

  1

• Voltage Gain-Nom:

  10

• Width:

  7.62 mm
