The INA110SG can handle input voltages up to ±650mV, but it's recommended to keep the input voltage within ±500mV to ensure accurate measurements.
The gain resistor (Rg) should be chosen based on the desired gain and the input voltage range. A higher gain resistor value results in higher gain, but also increases noise and offset voltage. A good starting point is to use the recommended values in the datasheet, and then adjust based on your specific application.
The REF pin is a reference voltage output that can be used as a voltage reference for the system. It's typically connected to the analog-to-digital converter (ADC) reference input to improve the accuracy of the measurements. The REF pin output voltage is 2.048V, and it's recommended to buffer it with an op-amp if it's not used directly.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and keeping the input and output traces short and shielded. Additionally, use a low-pass filter or a ferrite bead to filter out high-frequency noise, and consider using a shielded enclosure for the circuit.
The typical settling time of the INA110SG is around 10μs, but it can vary depending on the gain and input voltage. To ensure accurate measurements, it's recommended to wait for at least 2-3 times the settling time before taking a measurement. This ensures that the output voltage has stabilized and accurate readings can be taken.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA110SG Overview

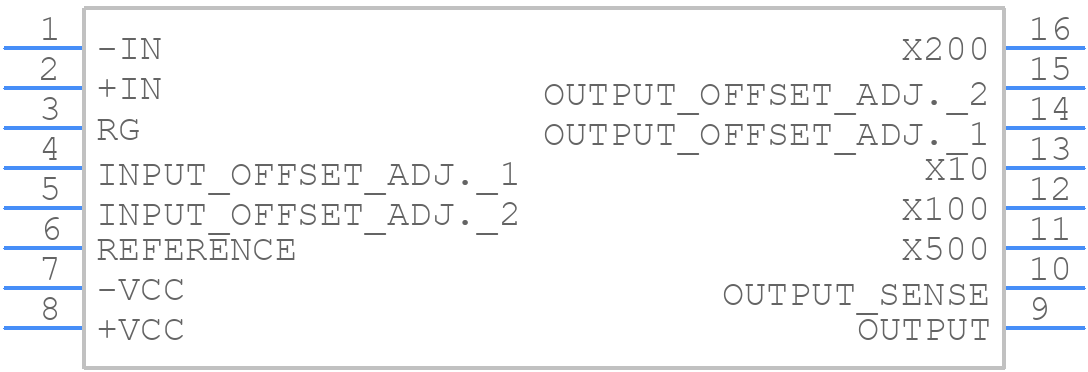

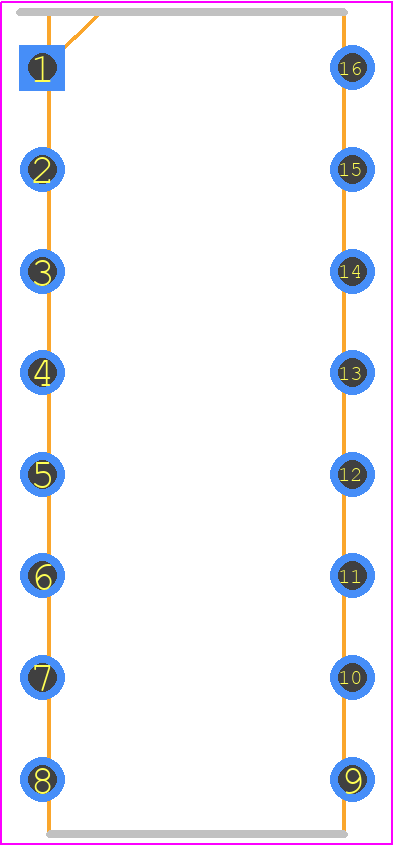

Use the download button to access the INA110SG schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like INA11,
or try a keyword search, such as Instrumentation Amplifiers
