The INA116PA can handle input voltages up to ±40V, but the common-mode voltage range is limited to ±12V.
The gain of the INA116PA can be optimized by selecting the appropriate gain resistor (RG) value. A smaller RG value results in higher gain, while a larger RG value results in lower gain. The optimal RG value depends on the specific application and desired gain.
The INA116PA's performance is affected by temperature, with changes in offset voltage, gain, and noise over the operating temperature range of -40°C to 125°C. The datasheet provides temperature coefficients for these parameters to help engineers design for temperature-related variations.
To minimize noise, use proper layout and grounding techniques, such as separating analog and digital grounds, using a quiet power supply, and minimizing parasitic capacitance. Additionally, consider using a low-noise power supply, and adding noise-reducing components such as capacitors or resistors in the circuit.
Yes, the INA116PA can be used in single-supply applications, but the input common-mode voltage range is limited to VCC-2V to VCC+2V. Additionally, the output voltage swing is reduced in single-supply operation, and the amplifier may not be able to swing all the way to the supply rails.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA116PA Overview

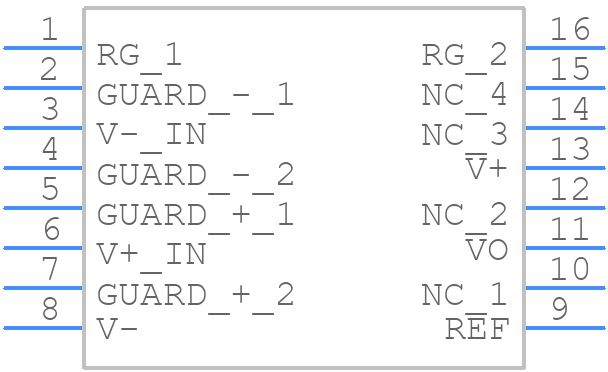

Use the download button to access the INA116PA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA11,
or try a keyword search, such as Instrumentation Amplifiers
