The INA125P can handle input voltages up to ±40V, but it's recommended to keep the input voltage within ±20V for optimal performance and to prevent damage to the device.
To ensure accurate gain and offset calibration, it's recommended to use a high-precision voltage reference and a stable power supply. Additionally, the INA125P should be operated within its specified temperature range and with minimal noise and interference.
To minimize noise and interference, it's recommended to use a 4-layer PCB with a solid ground plane, keep the input and output traces short and separate, and use a low-ESR capacitor for power supply decoupling. Additionally, the INA125P should be placed away from high-current and high-frequency components.
To handle EMI and RFI interference, it's recommended to use a shielded enclosure, keep the INA125P away from antennas and high-frequency components, and use EMI filters or ferrite beads on the input and output lines. Additionally, the INA125P should be operated within its specified frequency range.
The recommended power supply voltage for the INA125P is 5V ±10%, and the recommended current is 1.5mA (typical) to 3.5mA (maximum). It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the INA125P.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA125P Overview

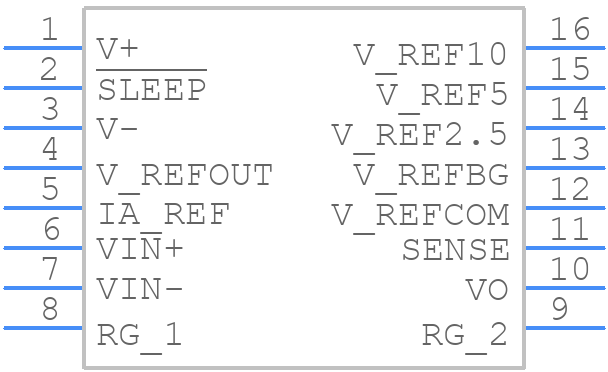

Use the download button to access the INA125P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA12,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
