INA163UAE4 - Texas Instruments

Description: INA163UAE4, Instrumention Amplifier, 70dB CMRR, 14-Pin SOIC

Download INA163UAE4 Model

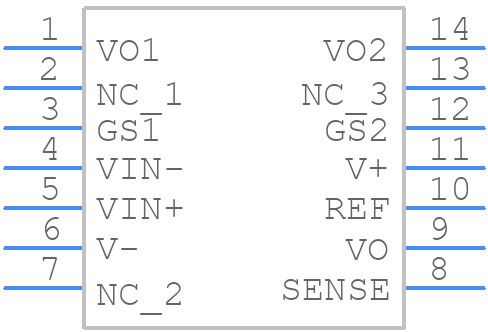

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA163UAE4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - INA163UAE4
click to zoom
3D Models
INA163UAE4 - Texas Instruments  - 3D model - Small Outline Packages - INA163UAE4
click to zoom

INA163UAE4 Details

  • Manufacturer Part Number:

    INA163UAE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-14

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    12 µA

  • Bandwidth (3dB)-Nom:

    3.4 MHz

  • Bias Current-Max (IIB) @25C:

    12 µA

  • Common-mode Reject Ratio-Min:

    100 dB

  • Input Offset Current-Max (IIO):

    1 µA

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.0006%

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    15 V/us

  • Subcategory:

    Instrumentation Amplifier

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    10000

  • Voltage Gain-Min:

    1

  • Width:

    3.9 mm

INA163UAE4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the INA163UAE4 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing the device close to the signal source. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise coupling.
  • To ensure accurate gain and offset calibration, it's recommended to use a high-precision voltage reference and a low-noise, low-temperature-coefficient resistor network. Additionally, calibration should be performed at the operating temperature range of the device, and the calibration process should be repeated after any changes to the circuit or environment.
  • A good power supply decoupling scheme for the INA163UAE4 involves using a combination of ceramic and electrolytic capacitors, with a total capacitance of at least 10uF, placed close to the device's power pins. This helps to filter out noise and ensure stable operation.
  • To minimize EMI in an INA163UAE4-based design, it's recommended to use a shielded enclosure, keep the device and signal traces away from noise sources, and use a common-mode choke or ferrite bead on the input lines. Additionally, using a low-pass filter on the output can help reduce high-frequency noise.
  • The INA163UAE4 is a high-power device, and proper thermal management is crucial to ensure reliable operation. A good thermal management strategy involves using a heat sink with a thermal conductivity of at least 1W/m-K, and ensuring good airflow around the device. Additionally, the device should be mounted on a PCB with a thermal via structure to dissipate heat efficiently.
