INA1650IPW - Texas Instruments

Description: Audio Transmitters, Receivers, Transceivers Dual SoundPlus high common-mode rejection (91-dB), low THD+N (-120-dB) differential line receiver 14-TSSOP -40 to 125

Download INA1650IPW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

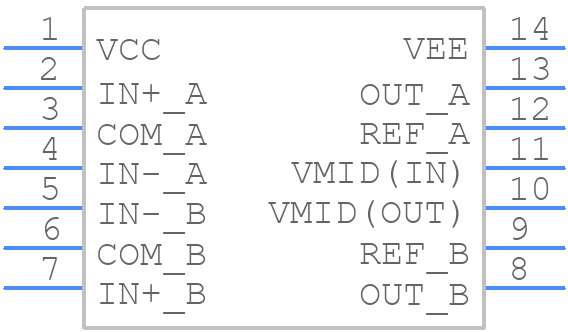

INA1650IPW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA1650IPW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
INA1650IPW - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

INA1650IPW Details

  • Manufacturer Part Number:

    INA1650IPW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-12-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.35 V

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

INA1650IPW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the INA1650IPW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The gain error of the INA1650IPW can be calculated using the formula: Gain Error (%) = ((VOUT / VREF) - 1) x 100. This calculation assumes that the input voltage is within the specified range and that the output voltage is measured at the output pin of the device.
  • The INA1650IPW can handle input voltages up to ±25V, but it's recommended to limit the input voltage to ±20V to ensure optimal performance and to prevent damage to the device.
  • To filter out noise and ripple in the output of the INA1650IPW, a low-pass filter can be added to the output stage. A simple RC filter with a cutoff frequency of around 1 kHz to 10 kHz can be effective in reducing noise and ripple.
  • The power consumption of the INA1650IPW depends on the supply voltage and the output current. According to the datasheet, the typical quiescent current is around 1.5 mA, and the maximum power consumption is around 15 mW at a supply voltage of 5V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA1650IPW Overview

Use the download button to access the INA1650IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA16, or try a keyword search, such as Line Driver or Receivers
