INA1651IPWR - Texas Instruments

Description: SoundPlus™ high common-mode rejection, low distortion differential line receiver

Download INA1651IPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

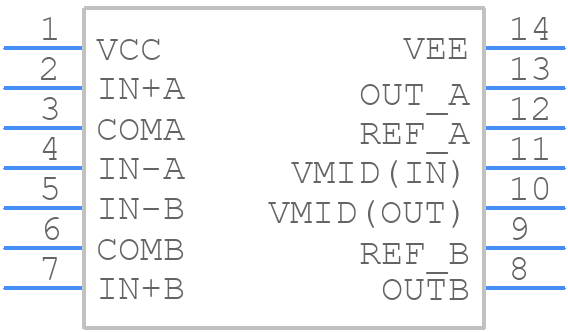

Symbol
INA1651IPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA1651IPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G14) height 1.2
click to zoom
3D Models
INA1651IPWR - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G14) height 1.2
click to zoom

INA1651IPWR Details

  • Manufacturer Part Number:

    INA1651IPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    LINE RECEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    0.35 V

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    2.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

INA1651IPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the INA1651IPWR evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The gain resistor value depends on the desired gain and the input signal range. Texas Instruments provides a gain resistor calculator tool and a detailed application note (SLAA445) to help with the selection process.
  • The INA1651IPWR has an input voltage range of ±25V, but it's recommended to limit the input voltage to ±20V to ensure reliable operation and to prevent damage to the device.
  • The INA1651IPWR is rated for operation up to 125°C, but the device's performance and accuracy may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is operated within its specified temperature range.
  • Texas Instruments recommends using a low-pass filter or a band-pass filter to reject noise and interference. The filter design depends on the specific application and the frequency range of interest. A detailed application note (SLAA446) provides guidance on filter design and noise reduction techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA1651IPWR Overview

Use the download button to access the INA1651IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA16, or try a keyword search, such as Line Driver or Receivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
