Texas Instruments provides a recommended PCB layout in the application note SLVA879, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The gain error of INA2134MDREP can be calculated using the formula: Gain Error (%) = (Vout / (Vref * G)) * 100, where Vout is the output voltage, Vref is the reference voltage, and G is the gain. The gain error is typically around ±0.1% for INA2134MDREP.
The maximum input common-mode voltage range for INA2134MDREP is from -0.2V to Vsupply - 1.5V, where Vsupply is the supply voltage. Exceeding this range may cause the device to malfunction or be damaged.
To handle EMI and RFI in your design using INA2134MDREP, use proper shielding, grounding, and layout techniques. Additionally, consider using filters, such as RC filters or ferrite beads, to reduce noise and interference. Texas Instruments also provides EMI and RFI guidelines in the application note SLVA879.
The thermal shutdown temperature of INA2134MDREP is typically around 150°C. When the device temperature exceeds this threshold, it will shut down to prevent damage. The device will automatically restart when the temperature drops below 140°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
INA2134MDREP Overview

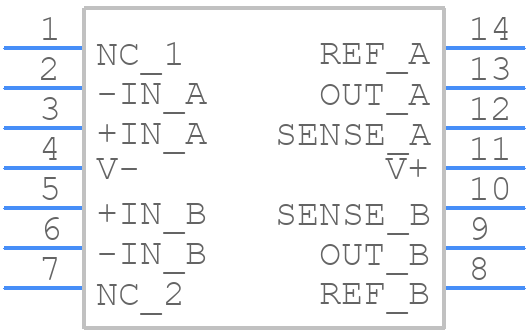

Use the download button to access the INA2134MDREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA21,
or try a keyword search, such as Other Signal Circuits
