Part Image

INA217AIDWT - Texas Instruments

Description: Low Noise, Low-Distortion Instrumentation Amplifier Replacement for SSM2017

Download INA217AIDWT Model

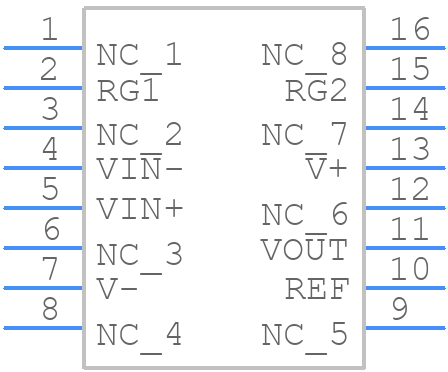

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
INA217AIDWT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
INA217AIDWT - Texas Instruments  - 3D model - Small Outline Packages - DW0016A
click to zoom

INA217AIDWT Details

  • Manufacturer Part Number:

    INA217AIDWT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    12 µA

  • Bandwidth (3dB)-Nom:

    3.4 MHz

  • Bias Current-Max (IIB) @25C:

    12 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Input Offset Current-Max (IIO):

    1 µA

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.0006%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Slew Rate-Nom:

    15 V/us

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    1000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    7.5 mm

INA217AIDWT Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the INA217AIDWT is 670mW at 25°C, but it can be derated to 500mW at 85°C.
  • To minimize noise and EMI, it's recommended to use a 4-layer PCB with a solid ground plane, keep the input and output traces short and away from each other, and use a common-mode choke or ferrite bead on the input lines.
  • The recommended input capacitor value for the INA217AIDWT is 10uF to 22uF, with an X7R or X5R dielectric, and a voltage rating of at least 10V.
  • Yes, the INA217AIDWT is rated for operation from -40°C to 125°C, but the accuracy and linearity may degrade at higher temperatures. It's recommended to derate the power dissipation and consider thermal management for high-temperature applications.
  • The gain error of the INA217AIDWT can be calculated using the formula: Gain Error (%) = (Vout - (Vcm x Gain x (Rf/Rg))) / (Vcm x Gain x (Rf/Rg)) x 100, where Vout is the output voltage, Vcm is the common-mode voltage, Gain is the gain setting, Rf is the feedback resistor, and Rg is the gain resistor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA217AIDWT Overview

Use the download button to access the INA217AIDWT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA21, or try a keyword search, such as Instrumentation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to INA217AIDWT

Showing 0 results

INA217AIDWT Alternates

Showing results

Image Part Number Model
Part Image INA217AIDWR Texas Instruments

Instrumentation Amplifier, 1 Func, 250uV Offset-Max, 3.4MHz Band Width, BIPolar, PDSO16
