INA219AIDCNT - Texas Instruments

Description: 26-V, Bidirectional, Zero-Drift, High-Side, I2C Out Current/Power Monitor

Download INA219AIDCNT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

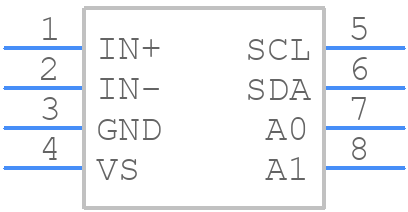

INA219AIDCNT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA219AIDCNT - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom
3D Models
INA219AIDCNT - Texas Instruments - 3D model - SOT23 (8-Pin) - DCN (R-PDSO-G8)
click to zoom

INA219AIDCNT Details

  • Manufacturer Part Number:

    INA219AIDCNT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    HIGH SIDE POWER/CURRENT MONITOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

INA219AIDCNT Frequently Asked Questions (FAQs)

  • The INA219 can measure bus voltages up to 26V, but the maximum voltage that can be measured accurately is 16V. Above 16V, the accuracy of the measurement may degrade.
  • The INA219 does not require calibration. It has an internal calibration that is performed during manufacturing. However, you may need to adjust the calibration register (CAL) to optimize the accuracy of the current measurement for your specific application.
  • The Rshunt resistor is used to measure the current flowing through the sense lines. The INA219 measures the voltage drop across the Rshunt resistor to calculate the current. The value of Rshunt should be chosen based on the maximum current expected in the application.
  • The INA219 is designed to measure DC current. While it can measure AC current, it is not suitable for measuring high-frequency AC currents. The INA219 has a bandwidth of 1 kHz, which means it can measure currents up to 1 kHz. For higher-frequency AC currents, a different device may be required.
  • The INA219 has an overcurrent detection feature that can be used to detect overcurrent conditions. When an overcurrent condition is detected, the INA219 sets the OVER flag in the register. You can use this flag to trigger an interrupt or take other actions to protect your system from overcurrent conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

INA219AIDCNT Overview

Use the download button to access the INA219AIDCNT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like INA21, or try a keyword search, such as Power Management Circuits
