INA229AIDGST - Texas Instruments

Description: Current & Power Monitors & Regulators 85-V, 20-bit, ultra-precise, SPI output current/voltage/power/energy/charge monitor with alert</p 10-VSSOP -40 to 125

Download INA229AIDGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

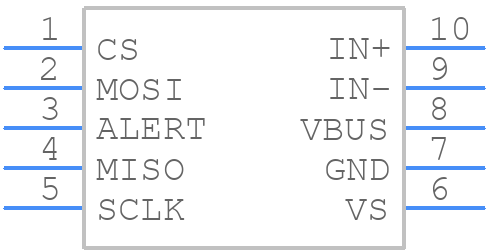

INA229AIDGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
INA229AIDGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
INA229AIDGST - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

INA229AIDGST Details

  • Manufacturer Part Number:

    INA229AIDGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +52V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

INA229AIDGST Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the input pins is ±40V, but it's recommended to keep it within ±20V for optimal performance.
  • The INA229AIDGST does not require calibration. It has an internal calibration and trimming to ensure accuracy. However, you may need to calibrate your system as a whole depending on your specific application.
  • The INA229AIDGST has a temperature coefficient of ±50 ppm/°C, which means that its accuracy can vary by ±0.005% per degree Celsius. This is relatively low and suitable for most applications.
  • The INA229AIDGST has a bandwidth of 350 kHz, making it suitable for most low-to-medium frequency applications. However, it may not be suitable for high-frequency applications above 100 kHz.
  • To minimize EMI, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and keeping sensitive traces away from noise sources. You can also use filters or shielding on the input lines.
